Weather Station
Keywords: barometer weather station, AW007 dial weather station, analog barometer thermometer hygrometer, AW008 weather station, dial type weather station

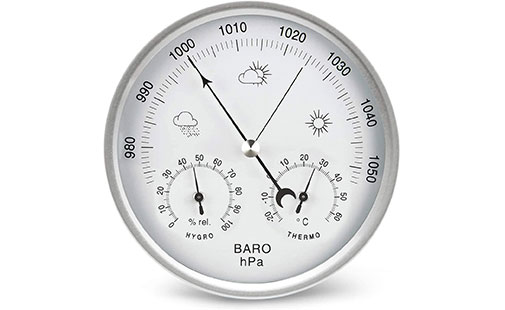

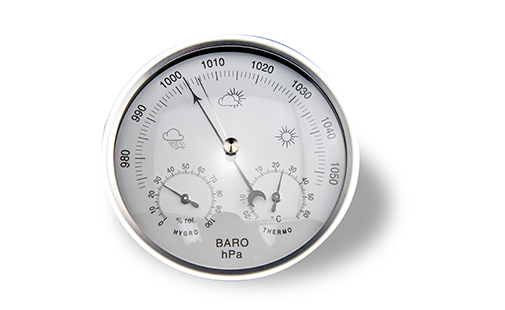

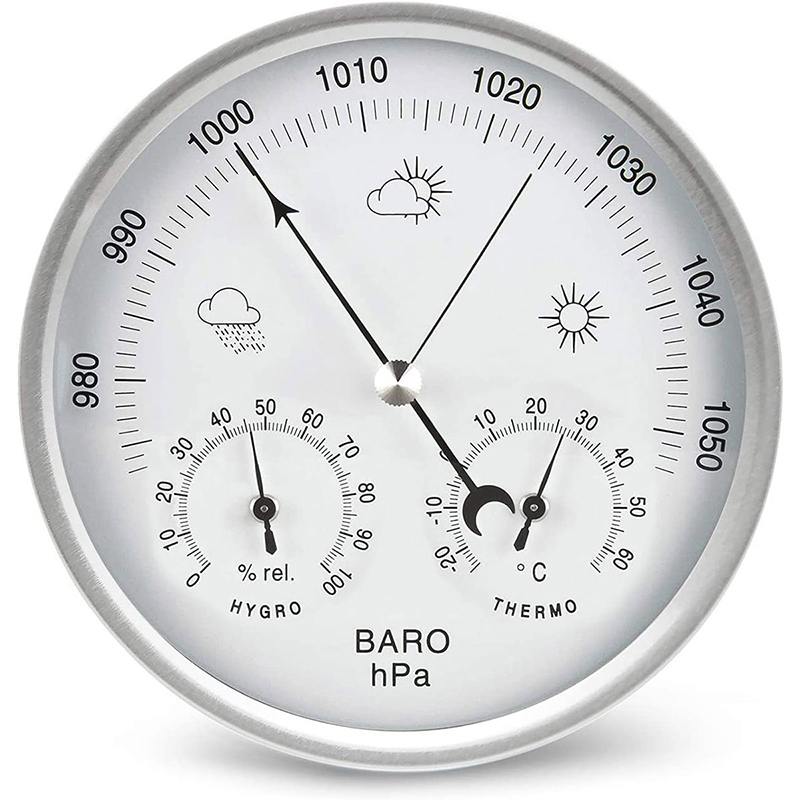

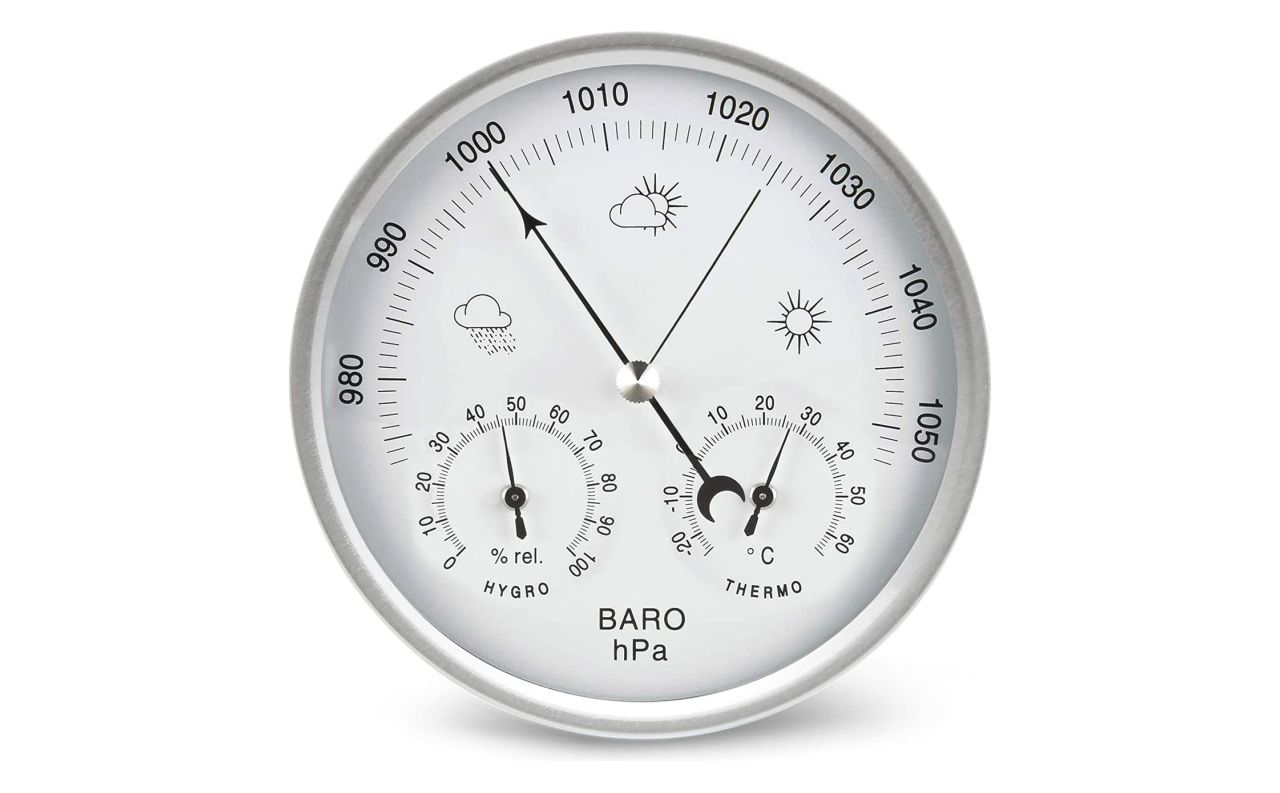

Dial type weather station combining a barometer, a thermometer and a hygrometer in one analog dial, available in 132 mm and 208 mm diameters with metric or imperial scales.
1. Three instruments in one dial — barometer, thermometer and hygrometer read together on a single analog face.
2. Simple, reliable and easy to read — purely mechanical dial display, no power supply and no calibration routine required.

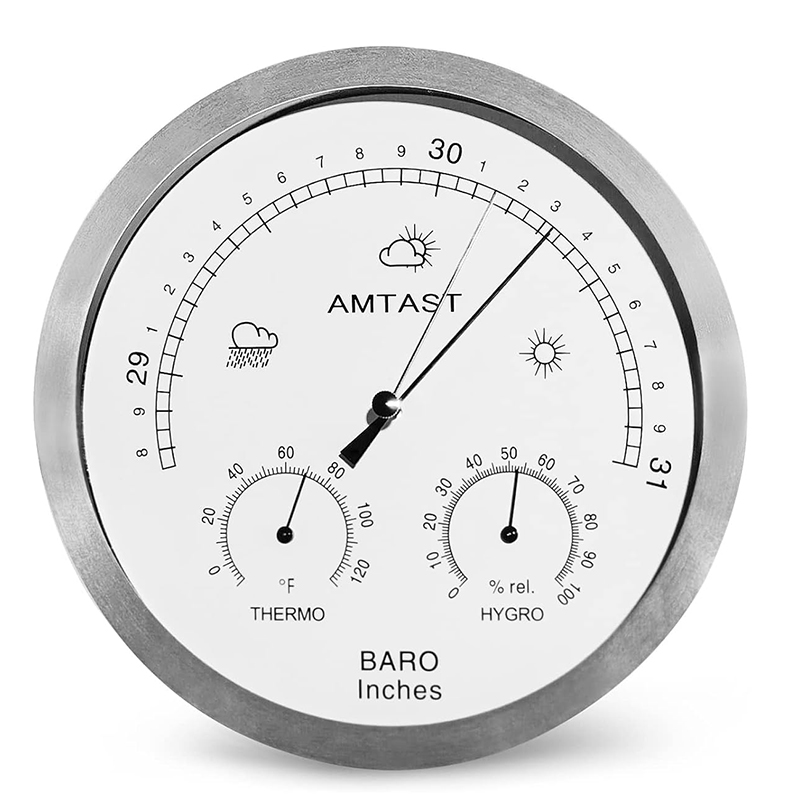

3. Metric or imperial version — AW007 / AW008 in metric units, AW007A / AW008A in imperial units.
4. Two dial sizes — 132 mm (5.2″) for AW007 / AW007A and 208 mm (8.2″) for AW008 / AW008A.
5. Superior materials — built for long term use with no special maintenance work necessary.
6. Slim profile — only 40 mm or 45 mm thick for flat wall mounting.
| Temperature Range | -25 °C ~ 65 °C (AW007, AW008); -10 °F ~ 130 °F (AW007A, AW008A) |
| Relative Humidity Range | 0 %RH ~ 100 %RH |
| Barometric Pressure Range | 973 hPa ~ 1060 hPa (AW007, AW008); 28.75 ~ 31 inHg (AW007A, AW008A) |
| Temperature Accuracy | ±2 °C (at -20 °C ~ 50 °C) |
| Humidity Accuracy | ±9 %RH (20 ~ 45 %RH); ±6 %RH (45 ~ 75 %RH); ±9 %RH (75 ~ 98 %RH) |
| Pressure Accuracy | ±10 hPa (1060 ~ 1030 hPa); ±5 hPa (1030 ~ 990 hPa); ±10 hPa (990 ~ 960 hPa) |
| Display Type | Analog dial, mechanical |
| Size (AW007 / AW007A) | Diameter 132 mm (5.2″), thickness 40 mm (1.58″) |
| Size (AW008 / AW008A) | Diameter 208 mm (8.2″), thickness 45 mm (1.78″) |
| AW007 | Metric system, diameter 132 mm (5.2″) |
| AW007A | Imperial system, diameter 132 mm (5.2″) |
| AW008 | Metric system, diameter 208 mm (8.2″) |
| AW008A | Imperial system, diameter 208 mm (8.2″) |
1. Home and office wall mounting for everyday pressure, temperature and humidity reading.
2. Classrooms and laboratories as a mechanical demonstration instrument.
3. Cabins, boats and holiday houses where a mains-free instrument is preferred.
4. Decorative interior fitting with a classic analog dial.
