AMT317 Multi-probe UV Light Meter

Order Number:

1. AMT317-1: UVC-X0

2. AMT317-2: UVC-X2

3. AMT317-3: UVCWP-X1

4. AMT317-4: UVCLED-X0

5. AMT317-5: UVB-X0

6. AMT317-6: UVA-X0

7. AMT317-7: UVA-X1

8. AMT317-8: UVA-X2

9. AMT317-9: UVALED-X0

10. AMT317-10: UVALED-X1

11. AMT317-11: UVALED-X3

12. AMT317-12: BL-X0

Features:

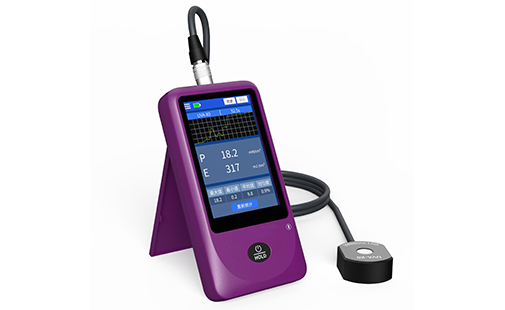

1. The UV light meter consists of a main unit and digital probes. The main unit is equipped with a 3.5-inch large touchscreen for easy and intuitive operation. Based on various testing requirements (such as UV spectrum range, application fields, measuring range, aperture size, etc.), 12 different UV probes are available and can be freely paired for use.

2. The multi-probe UV light meter is widely used for measuring the UV intensity and energy of UVA, UVB, UVC bands, and blue light LED lamps. It can be applied in the following industries or scenarios:

    1) UVA Band Probe: Can be used for ultraviolet curing, photolithography exposure, 3D printing, and other ultraviolet light source detection.

    2) UVB Band Probe: Suitable for detecting light sources such as therapeutic lamps, plant growth lights, and reptile lamps.

    3) UVC Band Probe: Can be used for detecting sterilization lamps in hospitals, pharmaceutical factories, pass-through windows, disease control centers, and wastewater treatment plants.

    4) Blue Light Band Probe: Can be used for detecting light sources such as 450nm blue light LED lamps and jaundice lamps.

3. Dynamic Power Curve Display: During measurement, the power curve can be dynamically displayed, allowing real-time monitoring and analysis of the UV irradiance intensity changes across different bands.

4. Simultaneous Measurement of Power and Energy: The instrument can measure both power and energy values simultaneously, and automatically calculate the maximum, minimum, average values, and uniformity of the power.

5. Advanced Digital Probe with High Measurement Accuracy: Utilizing digital probe technology, the instrument has strong anti-interference ability, stable measurement data, and high-speed data acquisition, ensuring more precise measurements.

6. High Precision, Traceable to Metrology Standards: The instrument offers high measurement accuracy and ensures compliance with national metrology institute standards.

7. Multiple Units Available, No Manual Conversion Required: Based on the probe model, various units such as μW/cm², mW/cm², W/m², and W/cm² are available for selection, eliminating the need for manual conversion.

8. Supports PC software: The instrument supports data import and export via PC software, enabling data sharing.

9. Standards: JJG 879-2015 UV Radiometer Calibration Procedures; WST 367-2012 Disinfection Technical Specifications for Medical Institutions; QBT 2826-2006 Offset Printing UV Curing Inks

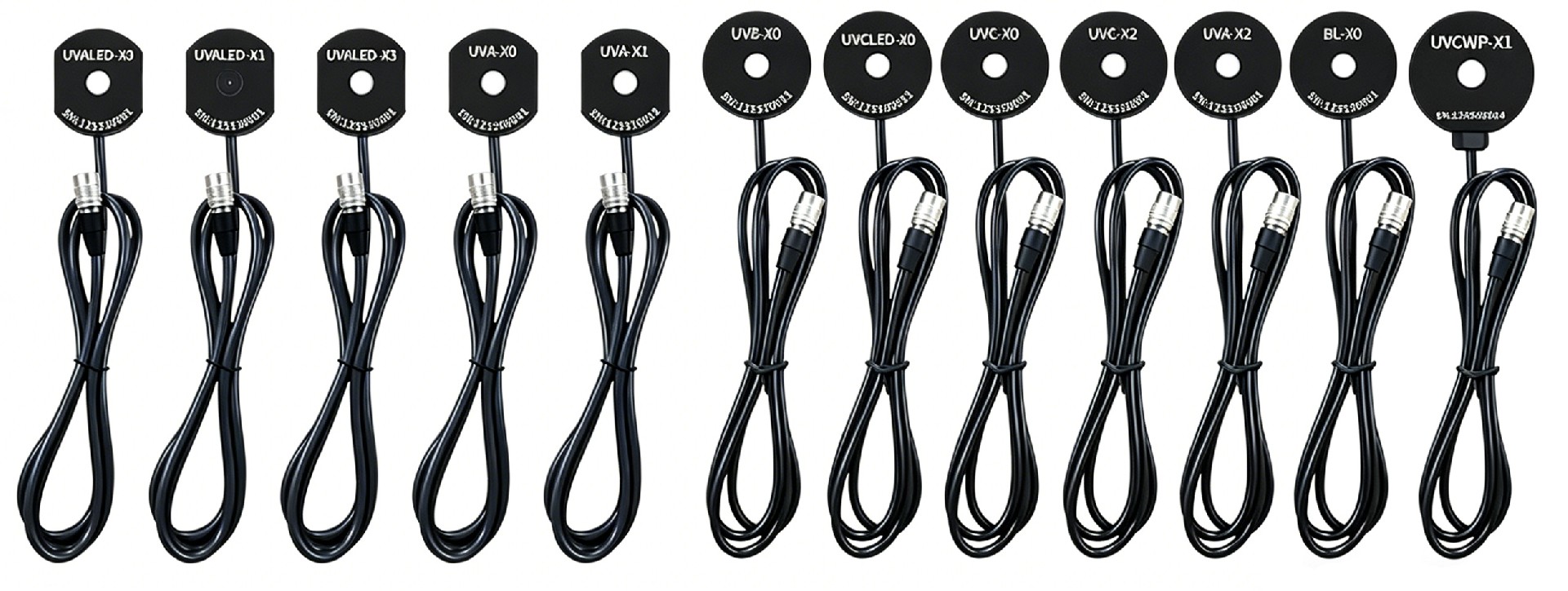

Probe Selections:

1. Detect UV Aging Box: UVB-X0, UVA-X2

2. Detect Ambient Light and Sunlight: UVA-X1, UVB-X0

3. Detect Welding Arc: UVA-X1, UVB-X0, UVC-X0

4. Detect UV Nail Lamp and 3D printing curing lamp: UVALED-X3

5. Detect Plant Growth Lamp or Reptile Lamp: UVB-X0

6. Detecting the 222nm Far UVC Lamps: UVC-X2

7. Detecting the Medical Phototherapy Devices or LED Blue Therapy Light: BL-X0

8. Detecting medical germicidal mercury lamps: UVC-X0

9. Detecting medical germicidal LED lamps: UVCLED-X0

Specifications:

1. Host weight: about 277g

2. Host size: 141mm*70.4mm*22mm (L*W*H)

3. Display: 480*320 dot IPS

4. Power supply: rechargeable lithium-ion battery, 3.7V, 4000mAh

5. Probe connection: push pull (Snap-in style)，Aviation socket

6. Power supply voltage: DC 5V

7. Operating current: 133mA

8. Operating power consumption: 665mW

UV Sterilization Probe

Test Aperture Diameter: Φ10mm

Power Measurement Range: 0~200000μW/cm²

Power Resolution: 0.1μW/cm²

Energy Measurement Range: 0~9999999μJ/cm²

Recording Time: 0~99999S

Measurement Accuracy: H<50μW/cm²: ±5μW/cm², H>=50μW/cm²: ±10%H (H = Standard Value)

Sampling Speed: 6 times/second

Optional Units: μW/cm² (Default), mW/cm², W/m²

1. UVC-X0

Application: 254nm UV Sterilization Mercury Lamp Measurement

Spectral Response: 230~280nm, λp=254nm

Probe Size: 39 x 15mm

2. UVCWP-X1

Application: 254nm UV Sterilization Mercury Lamp Measurement, 1m Waterproof

Spectral Response: 230~280nm, λp=254nm

Probe Size: 50 x 20mm

3. UVC LED-X0

Application: Wide Spectrum, 260nm-285nm LED Sterilization Lamp Measurement

Spectral Response: 230~315nm

Probe Size: 39 x 15mm

4. UVC-X2

Application: 222nm UV Sterilization Lamp Measurement

Spectral Response: 210~250nm, λp=222nm

Probe Size: 39 x 15mm

UV Curing Probe

Probe Size: 39mm (L) × 32mm (W) × 15mm (H)

Energy Measurement Range: 0~9999999mJ/cm²

Recording Time: 0~99999S

Sampling Speed: 2048 times/second

5. UVA-X0

Application: UV Curing, High-Pressure Mercury Lamp Measurement

Spectral Response: 315~400nm, λp=365nm

Test Aperture Diameter: Φ10mm

Power Measurement Range: 0~2000mW/cm²

Power Resolution: 0.1mW/cm²

Measurement Accuracy: H<5mW/cm²: ±0.5mW/cm², H>=5mW/cm²: ±10%H

Optional Units: mW/cm² (Default), W/m²

6. UVA LED-X0

Application: UV Curing, UV LED Area Light Source Measurement

Spectral Response: 340~420nm, calibrated to 395nm LED light source

Test Aperture Diameter: Φ10mm

Power Measurement Range: 0~200000mW/cm²

Power Resolution: 1mW/cm²

Measurement Accuracy: H<50mW/cm²: ±5mW/cm², H>=50mW/cm²: ±10%H

Optional Units: mW/cm² (Default), W/cm², W/m²

7. UVA LED-X1

Application: UV Curing, UV LED Point Light Source Measurement

Spectral Response: 340~420nm, calibrated to 395nm LED light source

Test Aperture Diameter: Φ1mm

Power Measurement Range: 0~200000mW/cm²

Power Resolution: 1mW/cm²

Measurement Accuracy: H<50mW/cm²: ±5mW/cm², H>=50mW/cm²: ±10%H

Optional Units: mW/cm² (Default), W/cm², W/m²

General Purpose Probe:

Test Aperture Diameter: Φ10mm

Recording Time: 0~99999S

8. BL-X0

Application: 450nm Blue Light Measurement

Spectral Response: 410~490nm, λp=450nm

Power Measurement Range: 0~2000mW/cm²

Power Resolution: 0.1mW/cm²

Energy Measurement Range: 0~9999999mJ/cm²

Measurement Accuracy: H<5mW/cm²: ±0.5mW/cm²; H>=5mW/cm²: ±10%H

Sampling Speed: 2048 times/second

Optional Units: mW/cm² (Default), W/m²

Probe Size: 39 x 15mm

9. UVB-X0

Application: UVB Light Source Measurement at Common Wavelengths Including 297nm, 308nm and 313nm

Spectral Response: 280~315nm, λp=310nm

Power Measurement Range: 0~200000μW/cm²

Power Resolution: 0.1μW/cm²

Energy Measurement Range: 0~9999999μJ/cm²

Measurement Accuracy: H<50μW/cm²: ±5μW/cm², H>=50μW/cm²: ±10%H

Sampling Speed: 6 times/second

Optional Units: μW/cm² (Default), mW/cm², W/m²

Probe Size: 39 x 15mm

10. UVA-X2

Application: 340nm Aging Lamp Measuremen

Spectral Response: 315~365nm, λp=340nm

Power Measurement Range: 0~200000μW/cm²

Power Resolution: 0.1μW/cm²

Energy Measurement Range: 0~9999999μJ/cm²

Measurement Accuracy: H<50μW/cm²: ±5μW/cm², H>=50μW/cm²: ±10%H

Sampling Speed: 6 times/second

Optional Units: μW/cm² (Default), mW/cm², W/m²

Probe Size: 39 x 15mm

11. UVA-X1

Application: Low-Range Universal UVA Light Source Measurement

Spectral Response: 315~400nm, λp=365nm

Power Measurement Range: 0~200000μW/cm²

Power Resolution: 0.1μW/cm²

Energy Measurement Range: 0~9999999μJ/cm²

Measurement Accuracy: H<50μW/cm²: ±5μW/cm², H>=50μW/cm²: ±10%H

Sampling Speed: 6 times/second

Optional Units: μW/cm² (Default), mW/cm², W/m²

Probe Size: 39 x 32 x15mm

12. UVA LED-X3

Application: Low-Range Universal UVA+UVV LED Light Source Measurement

Spectral Response: 340~420nm, calibrated to 395nm LED light source

Power Measurement Range: 0~200000μW/cm²

Power Resolution: 0.1μW/cm²

Energy Measurement Range: 0~9999999μJ/cm²

Measurement Accuracy: H<50μW/cm²: ±5μW/cm², H>=50μW/cm²: ±10%H

Sampling Speed: 6 times/second

Optional Units: μW/cm² (Default), mW/cm², W/m²

Probe Size: 39 x 32 x15mm
