Water Activity / Moisture Meter

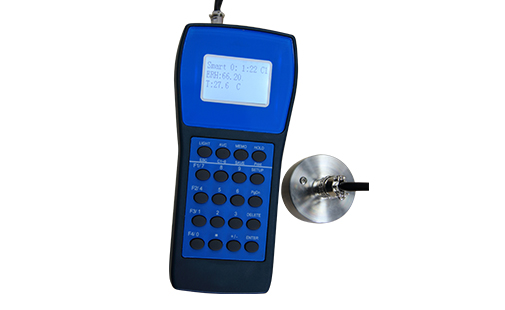

MS2100 Water Activity Moisture Meter

Keywords: water activity meter, MS2100 water activity meter, moisture meter, aw meter, industrial moisture analyzer

One industrial instrument for water activity and moisture: with the right sensor it reads air, liquids, gases and solids — with 0.001 aw resolution and explosion-proof construction.

Water activity (aw) measures the energy status of water in a system — it tells you how tightly water is bound, structurally or chemically, inside a substance. Technically it is the relative humidity of air in equilibrium with a sample inside a sealed chamber. Water activity matters because it predicts safety and stability: microbial growth, chemical and biochemical reaction rates, and physical properties. It influences colour, odour, flavour, texture and shelf life of many products.

MS2100 is a full-function industrial instrument. Fitted with different sensors it measures the moisture value of air, liquids, gases and solids, so one meter serves several sampling points. Water activity is read over 0 – 1.00 aw with 0.001 aw resolution and ±0.015 aw repeatability; moisture is read over 0 – 100% RH with ±0.5% abs repeatability, and the working temperature range extends from −20 °C to 85 °C. Explosion-proof construction (Class I Group A/B/C/D, Class II Group E/F/G) allows use in hazardous areas, and three test modes — Smart, Project and Normal — match the instrument to routine checks or method-specific work.

Key Features

1.  Multi-parameter — with different sensors, measures the moisture of air, liquids, gases and solids.

2.  0.001 aw resolution — water activity range 0 – 1.00 aw, repeatability ±0.015 aw.

3.  Moisture mode — 0 – 100% RH, ±2% FS accuracy, 0.1% resolution, repeatability ±0.5% abs.

4.  Wide working temperature — −20 °C to 85 °C, suited to plant and field conditions.

5.  Explosion-proof — Class I Group A/B/C/D and Class II Group E/F/G.

6.  Three test modes — Smart, Project (Porj) and Normal, for routine or method-specific measurement.

Technical Specifications

Applications

1.  Chemical and petrochemical plants requiring explosion-proof instruments

2.  Pharmaceutical raw materials, granules and powders

3.  Food and feed production — powders, dried products and semi-finished goods

4.  Gases and liquids where moisture must be monitored in line

5.  Storage and logistics monitoring of moisture-sensitive materials
