Fruit Hardness Tester Series

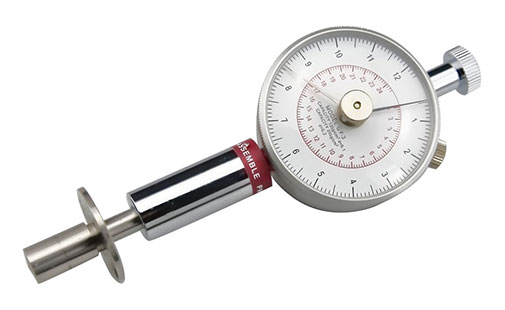

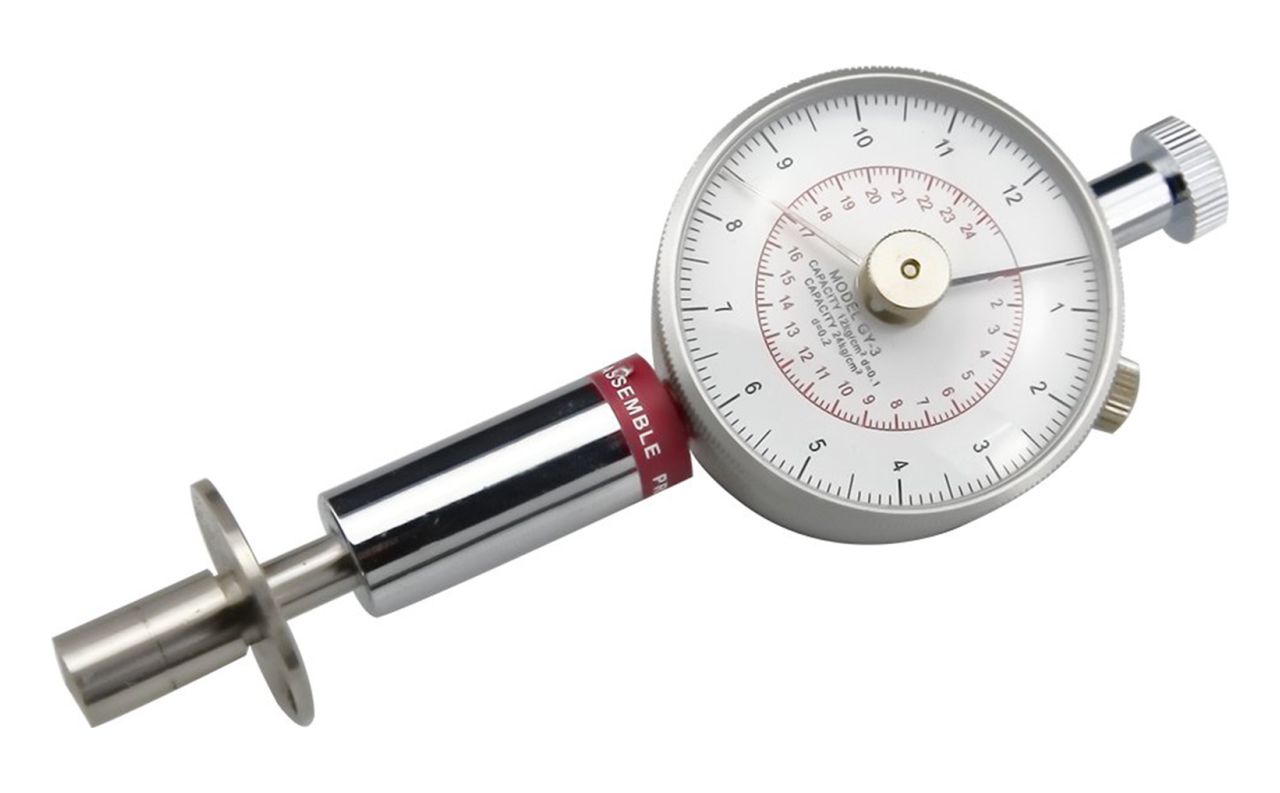

GY-1, GY-2, GY-3 Analog Fruits Hardness Tester, Penetrometer, Sclerometer

Keywords: fruit hardness tester, fruit penetrometer, analog fruit firmness tester, fruit ripeness tester, GY-1 hardness tester

Three-model analog fruit penetrometer (GY-1 / GY-2 / GY-3) for fast, reliable fruit firmness and maturity testing.

The GY Series analog fruit hardness tester (also called fruit penetrometer or sclerometer) includes three models: GY-1, GY-2 and GY-3, designed specially for inspecting the hardness of fruits such as apple, pear, strawberry, grape and so on. Judging the hardness and maturity of fruits helps with breeding, storage, export, transport and processing.

With measuring ranges from 0.5 to 24 kg/cm² across the series, a compact pen-style body of 140×60×30 mm and a weight of only 0.5 kg, the GY series fruit firmness testers are widely used by fruit research departments, fruit companies, fruit farms, colleges and similar organizations for daily fruit quality control.

Key Features

1.  Three models, wide range coverage — GY-1 measures 2~15 kg/cm², GY-2 measures 0.5~4 kg/cm², and GY-3 offers two ranges of 0.5~12 and 1~24 kg/cm², covering soft berries to hard fruits.

2.  Analog dial, easy reading — clear dial resolution down to 0.02 kg/cm² (GY-2) for direct hardness readings without complex setup.

3.  Interchangeable heads on GY-3 — 11 mm and 8 mm pressure heads supplied for different fruit sizes; GY-1 and GY-2 use a 3.5 mm head.

4.  Compact and portable — pen-style 140×60×30 mm housing, 0.5 kg weight and 10 mm stroke, convenient for orchard and field use.

How to Use

1.  Select the head — choose the proper pressure head according to the fruit species and expected firmness.

2.  Zero the dial — check that the pointer rests at zero before measurement.

3.  Press into the fruit — push the pressure head vertically and uniformly into the peeled fruit surface up to the scale line.

4.  Read the result — read the hardness value in kg/cm² directly from the dial and record it.

Technical Specifications

Applications

1.  Fruit firmness and maturity inspection of apple, pear, strawberry, grape and other fruits.

2.  Quality control for fruit breeding, storage, export, transport and processing.

3.  Daily use in fruit research departments, fruit companies, fruit farms and colleges.
