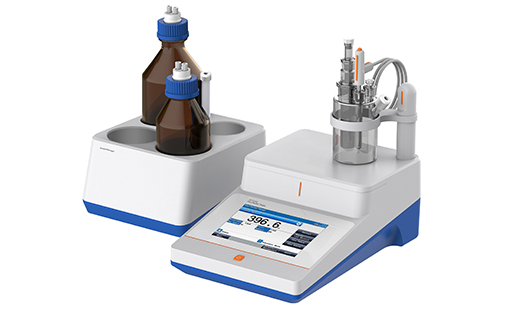

KFT-41C Karl Fischer Titrator

Features:

1. Color High contrast LCD touchscreen, 7.0 inches.

2. Coulometric KF Titration.

3. Support oven sampling method, to meet the gas, solid, liquid in the constant moisture, trace moisture measurement.

4. Coulometric Karl Fischer Titration

    1) Auto Titration Method, Oven Titration Method, Oven Blank, and Coefficient correction Method.

    2) The solvent manager adopts anti-leakage liquid and anti-pour design of waste liquid bottle, supports to drain solution and feed solvent, ensure safe handling of Karl Fischer chemicals.

5. Data management

    1) Auto/manual drift adjust ensures accurate results.

    2) Selectable units including μg, mg, %, ppm, mg/L and μg/mL.

    3) User password management.

    4) Store up to 200 titration data sets (GLP-compliant).

    5) RS-232 communication for print and the print format can be alternate.

    6) USB communication for PC software.

    7) USB drive for data export with CSV format.

    8) Optional GMP software to implement GMP management functions (compliant with FDA 21 CFR Part 11 ).

Includes:

1. Solvent manager

2. Coulometric vessel

3. Measuring electrode

4. Generator electrode

Specifications:

1. Principle: Karl Fischer Coulometric Titration

2. Water:

    1) Range: 10.0μg ~ 200mg

    2) Resolution: 0.1μg

    3) Unit: μg, mg, %, ppm, μg/mL, mg/L

    4) Repeatability: ≤1%

3. mV Range: 0~2000mV

4. mV Resolution: 0.1mV

5. Polarization Current Accuracy: ±3%

6. Polarization Current Fluctuation: ±2.5%/30min

7. Working Current Accuracy: ±0.5%

8. Working Current Fluctuation: ±0.2%/10min

9. Power Supply: AC100~240V, 47~63Hz

10. Dimensions: 240×370×270mm

11. Net Weight: About 4kg
