ANGLE AND SLOPE MEASUREMENT

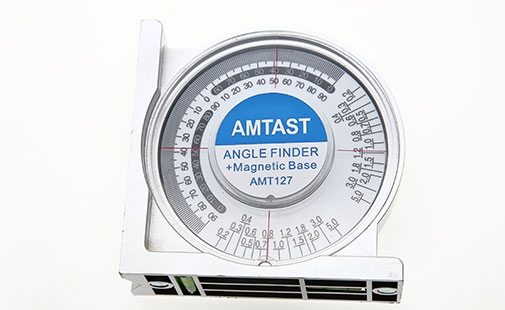

AMT127 Angle Finder

The AMT127 is an angle locator designed for durability and convenient use. Its high-visibility indicator with clear marks and large digits is easy to read, and a high sensitivity bearing gravity dial automatically measures various gradients. A strong magnetic contact holds the instrument on steel surfaces for accurate angle identification, while a high transparency panel keeps the observation clear. The body is made of high-impact ABS plastic — durable, lightweight and resistant to wear.

Key Features

1.  Angle locator — designed for durability and convenient use

2.  High-visibility indicator — clear marks and large digits, easy to read

3.  Rear comparison table — slope and angle conversion table on the back, with dual level bubble for use even in the dark

4.  Strong magnetic contact — holds firmly to steel for accurate angle identification

5.  High-impact ABS plastic — durable, lightweight and resistant to wear

6.  Bearing gravity dial — high sensitivity dial automatically measures various gradients

7.  High transparency panel — clearer observation, with slope and angle conversion tables attached

Dial, Magnetic Base and Reference Table

The dial carries both degree graduations and slope markings, the magnetic base incorporates two spirit level vials, and the rear face carries a slope and angle table of comparisons for on-the-spot conversion.

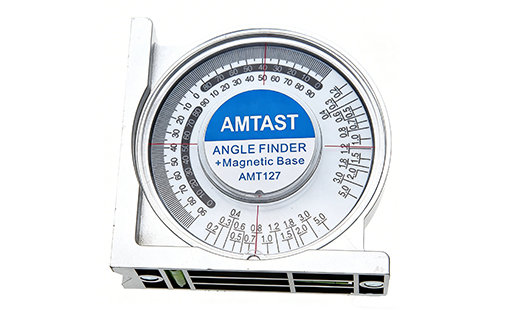

Angle dial and graduated scales

Magnetic base and spirit level vials

Rear slope and angle reference table

Technical Specifications

Applications

1.  Civil engineering — solar photovoltaic installation, retaining wall construction, ditches and dams, pipeline drainage

2.  Building engineering — indoor and outdoor drainage gradient setting and inclination measurement

Measurement Notes

1.  Let the dial settle — the bearing gravity dial needs a moment to settle before the reading is taken

2.  Use the magnetic base — on steel surfaces the strong magnetic contact holds the instrument while the angle is read

3.  Check the spirit vials — the dual level bubble confirms the reference surface is as expected

4.  Convert on the rear table — the slope and angle table of comparisons converts between degree, slope percentage and length values
