Keywords: portable haze meter, haze and transmittance meter, ASTM D1003 haze meter, handheld haze meter, plastic haze meter

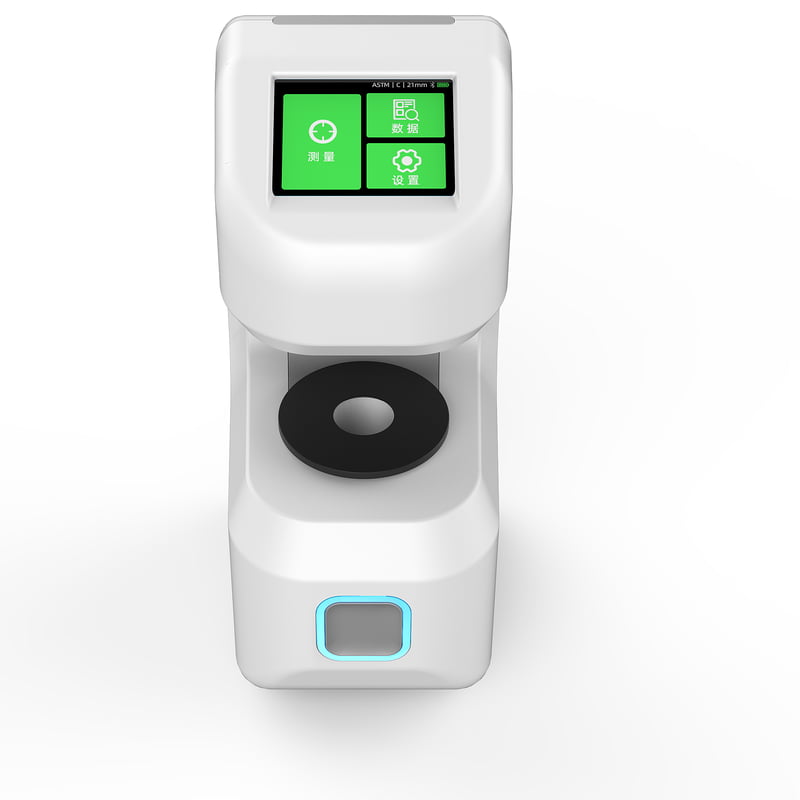

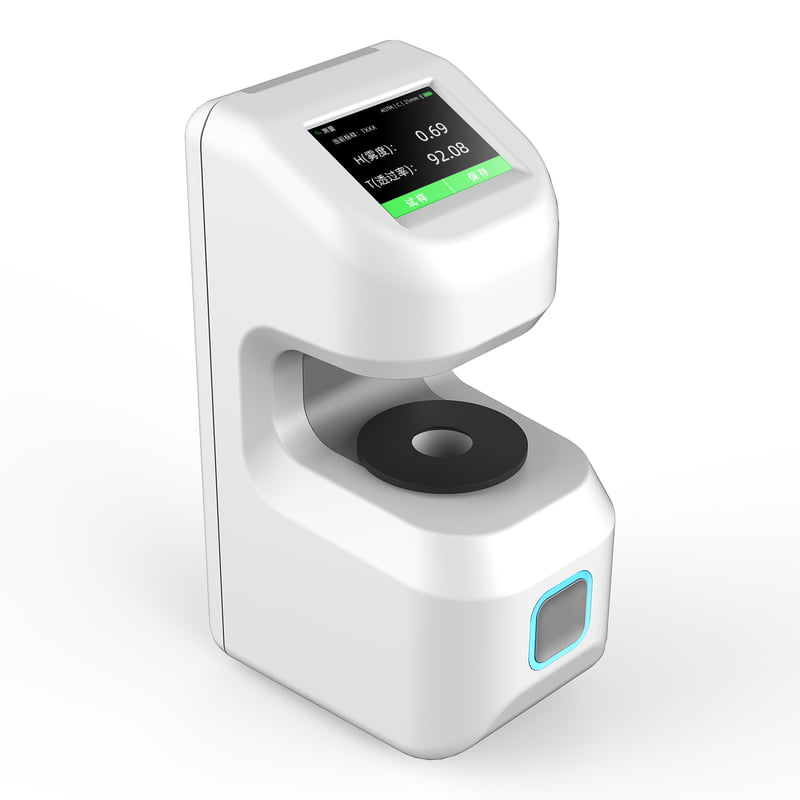

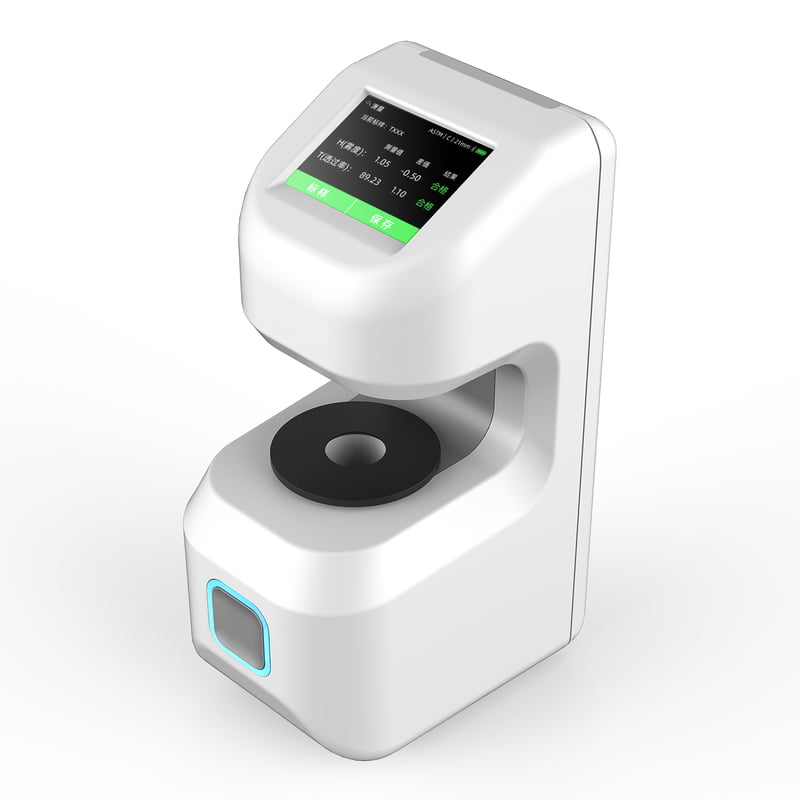

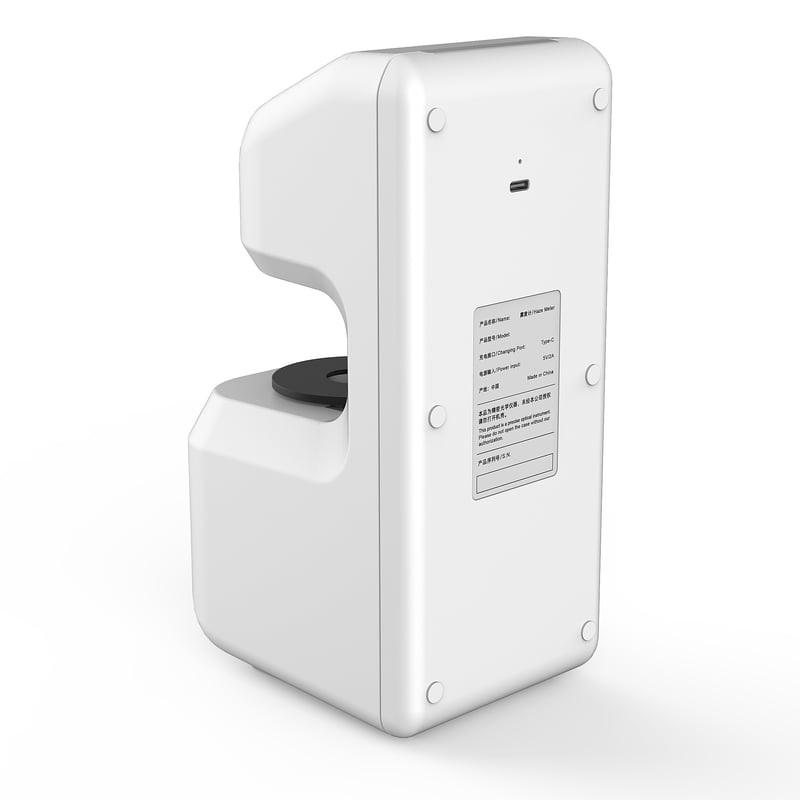

The AMT606 Series is a portable haze and transmittance meter for measuring transparent and translucent materials. Choose from three configurations with 21 mm, 15 mm, and 12 mm measuring apertures to suit different sample sizes. CIE A, C, and D65 light sources, a 2.8-inch touchscreen, and a dual optical-path design support consistent haze testing in the lab or production area. The series also supports mobile app operation, wireless control, cloud-linked data storage, and PC QC software for report export.
1. Portable handheld design for haze and transmittance checks at different locations.
2. Three model configurations provide one, two, or three magnetic interchangeable measuring apertures.
3. Measure haze and transmittance under CIE A, C, and D65 light sources.
4. Dual optical path and standby self-test support instrument stability.
5. 2.8-inch touchscreen displays measurement results and operating controls.
6. Connect to the Haze Meter mobile app for wireless operation and account-linked cloud data storage.
7. Connect to PC QC software to export measurement data and reports.
8. ASTM haze and transmittance testing across the series; ISO testing is supported by AMT606 and AMT606B.

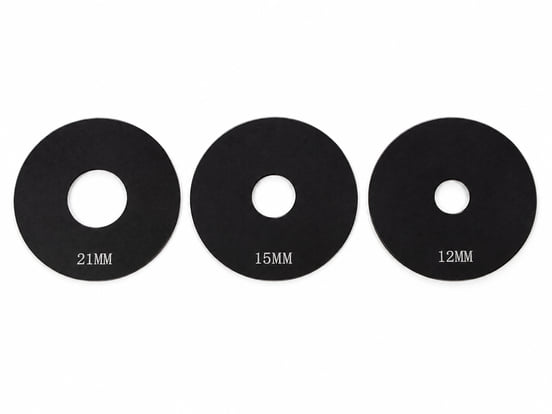

Measurement apertures |

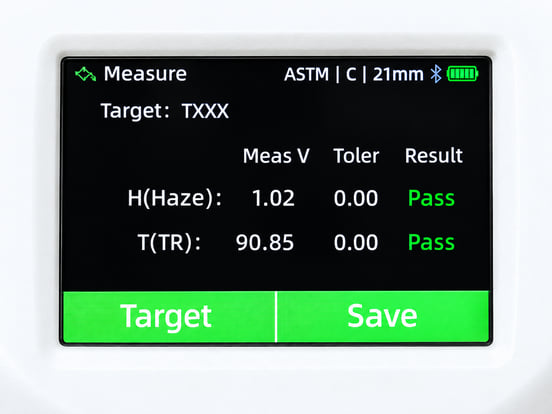

Measurement screen |
| Parameter | Specification |
|---|---|
| Measurement parameters | Haze, transmittance, and optical density |
| Test standards | ASTM D1003/D1044; ISO 13468/14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08 |
| Light source | CIE A, C, and D65 |
| Spectral response | Y/V(λ), CIE spectral function |
| Measurement geometry | 0/d |
| Measuring aperture | 21 mm, 15 mm, and 12 mm |
| Aperture count | 3 |
| Measurement range | 0–100% |
| Resolution | 0.01% |
| Repeatability | 0.02 |
| Sample thickness | ≤40 mm |
| Display | 2.8-inch touchscreen |
| Data storage | Large-capacity memory |
| Interface | USB |
| Mobile app / cloud features | App connection, wireless control, and cloud-linked data storage |
| Power supply | Lithium battery |
| Operating conditions | 5–40 °C; relative humidity ≤80% at 35 °C, non-condensing |
| Storage conditions | −20–45 °C; relative humidity ≤80% at 35 °C, non-condensing |
| Dimensions (L × W × H) | 133 × 99 × 224 mm |
| Weight | 1.25 kg |
| Charger included | Yes |
| Included aperture set | 3 apertures |
1. Haze and light-transmittance inspection of plastic sheets and films.
2. Quality checks for glass and other transparent or translucent materials.
3. Production inspection and laboratory evaluation of optical material clarity.
1. Custom measuring aperture sizes are available on request.
