| Specifications | Range | Best Accuracy |

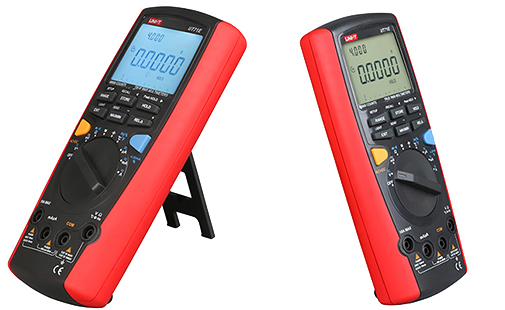

| Model | UT71E | |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.025%+5) |
| AC Voltage (V) | 4V/40V/400V/1000V | ±(0.4%+30) |
| DC Current (A) | 400μA/4000μA/40mA/400mA/10A | ±(0.1%+15) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/10A | ±(0.7%+15) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.3%+8) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/400μF/4mF/40mF | ±(1%+20) |
| Frequency (Hz) | 40Hz-400MHz | ±(0.01%+8) |
| Temperature (°C) | -40 °C ～ 1000°C | ±(1%+30) |
| Temperature (°F) | -40°F～1832°F | ±(1.5%+50) |
| Power (W) | 2500W | ±(2%+10) |
| Features | ||
| Display Count | 40000 | |
| Auto Range | √ | |
| True RMS | √ | |
| Bandwidth (Hz) | 100kHz | √ |
| Duty Cycle | 10% ～ 90% | ±(1%+30) |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| Data Logging | 100 | |
| USB Interface | √ | |
| Double Backlight | √ | |
| Analog Bar Graph | √ | |
| Full Icon Display | √ | |
| Setup | √ | |
| Input Impedance for DCV | DC 400mV: around 2.5GΩ; Other Ranges: 10MΩ | √ |
| 4 - 20mA Loop | 0～100% | ±(1%+50) |
| Fused 10A | √ | |
| Current Measurement Alarm | √ | |
| Voltage & Current AC+DC Measurement | √ | |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 73mm X 50mm | |
| Product Color | Red and grey | |
| Product Net Weight | 384g | |
| Product Size |
200mm X 93mm X 40mm |
|
| Standard Accessories |
Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable,PC Software CD, Carrying Bag, Point Contact Temperature Probe, Power Adaptor |
|
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 22pcs | |
| Standard Carton Measurement | 535mm × 370mm × 425mm (0.084CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 22kg | |
