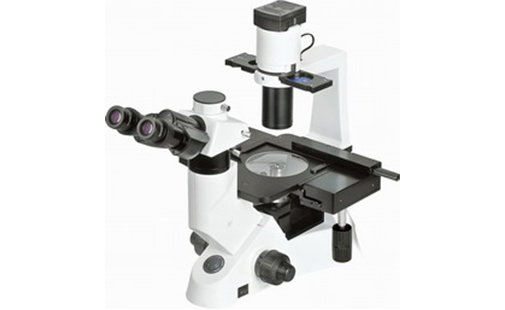

NIB-100 Inverted Biological Microscope

Inquire Now

Product Description

NIB-100 Inverted Biological Microscope

Excellent Optical Function with Infinitive Optical System. Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue.


With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier
Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable
Different Holders for Various Observations
With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens

Specification:NIB-100
Viewing HeadTrinocular Head Inclined at 300, Interpupillary Distance 48~75mm●
EyepieceHigh-point, Extra Wide Field Eyepiece EW10X/ 22●
ObjectiveLWD Infinite Plan Objective4X/ 0.1, WD 18mm●
10X/ 0.25, WD 10mm○
20X/ 0.4, WD 5.1mm○
40X/ 0.6, WD 2.6mm●
Infinite Plan Phase ObjectivePH10X/ 0.25, WD 10 mm●
PH20X/ 0.4, WD 5.1mm●
PH40X/ 0.65, WD 0.35mm○
NosepieceQuintuple Nosepiece●
CondenserELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)●
CenteringCentering Telescope (φ30MM)○
Phase Annulus10X ~ 20X, 40X; Phase Annulus Plate●
10X ~ 20X, 40X; Phase Annulus Plate○
StagePlain Stage 160 x 250mm●
Glass Insert●
Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang120x78mm○
Auxiliary Stages70x180mm●
Terasaki Holder○
φ38mm Petri Dish Holder○
φ54mm Slide Glass Holder○
FocusingCoaxial Coarse and Fine Adjustment, Vertical Objective Movement
Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation		●
IlluminationHalogen Lamp 6V/ 30W●
FilterDiameter 45mm, Blue,Green and Ground Glass●
Photo Attachment
○
Video AdapterVideo Adapter with C Mount○
