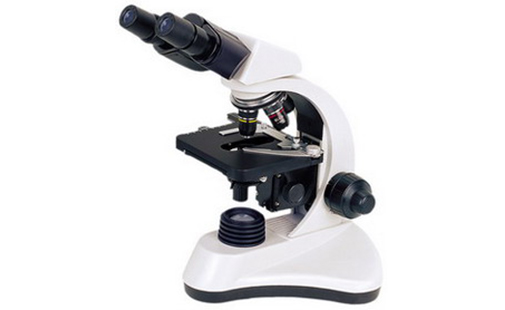

N-200M Biological Microscope
| With excellent optical system and reliable structure, it makes the image much sharper, and the operation easier. With wide range of accessories [e.g. dark field, phase contrast, epi-fluorescent] and advances to expand the application scope of the N-200M, the versatility of the microscope provides More Microscopy for you. |
| Features |
| Big Operating Space with Backward Nosepiece, Sharp Image with High Quality Objectives |
| Easier Comparing Test with Dual Slides Finger of Mechanical Stage |
| Comfortable Handling with Precise Focusing System |
| N-200M | ||
| Viewing Head | Compensation Free Binocular Head, Inclined at 30° | ● |
| Compensation Free Trinocular Head, Inclined at 30° | ○ | |
| Monocular Head, Inclined at 30° | ○ | |
| Eyepiece | Wide Field Eyepiece WF10X/ 18 | ● |
| Wide Field Eyepiece WF16X/ 11 | ○ | |
| Objective | Semi-plan Achromatic Objective 4X, 10X, 40X, 100X | ● |
| Plan Achromatic Objective 4X, 10X, 20X, 40X, 60X, 100X | ○ | |
| Nosepiece | Backward Quadruple Nosepiece | ● |
| Quintuple Nosepiece | ○ | |
| Stage | Double Layers Mechanical Stage 140 x 140mm/ 75 x 50mm | ● |
| Condenser | NA 1.25 Abbe Condenser with lris Diaphragm and Filter | ● |
| Illumination | Halogen Lamp 6V/ 20W, Brightness Adjustable | ● |
| Kohler Illumination | ○ | |
| Filter | Blue Filter | ● |
| Green Filter | ● | |
| Polarization Set | Simple Polarization Set | ○ |
| Phase Contrast Kit | Simple Phase Contrast Kit | ○ |
| Sliding Phase Contrast Kit | ○ | |
| Turret Phase Contrast Kit | ○ | |
| Dark Field Attachment | Dark Field Condenser (Dry) NA 0.9 | ○ |
| Dark Field Condenser (Oil) NA 1.25-1.36 | ○ | |
| Epi-fluorescent Attachment | ○ | |
| Pointer | Green LED Pointer System | ○ |
| Note: ●Standard Outfit, ○Optional | ||
