Hardness Tester
Keywords: Barcol hardness tester, Barcol impressor, HT-10 hardness tester, aluminum hardness tester, indentation hardness tester

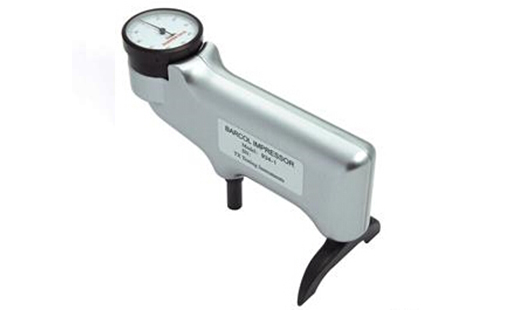

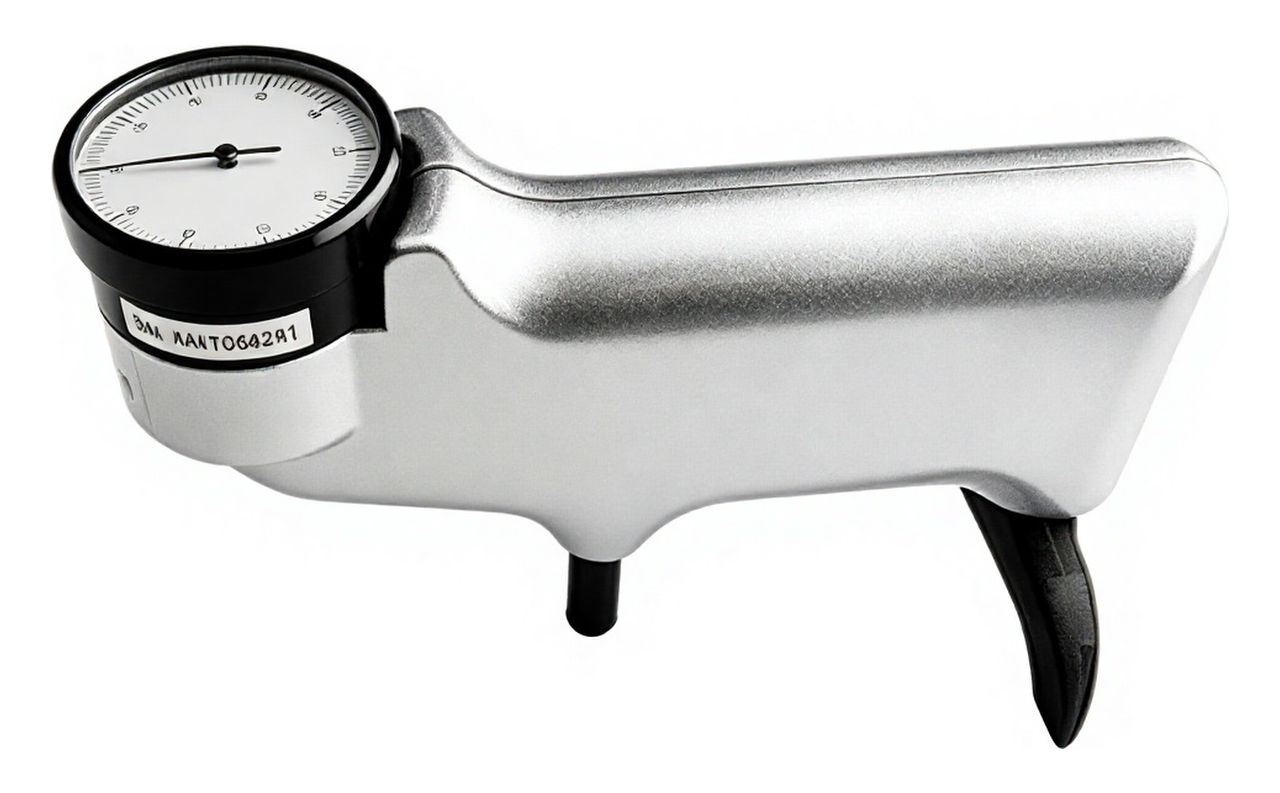

Barcol Impressor indentation hardness tester with 100 graduations for testing aluminum, aluminum alloys, copper, plastics and rubber, meeting ASTM B648-00 and ASTM D2583-07.
1. Easy to use: single hand operation, high efficiency, able to test at any site
2. High sensitivity: 100 graduations, much higher than the Webster hardness tester
3. Wide testing range: from very soft pure aluminum to very hard aluminum alloys
4. Less thickness requirement: can test workpieces with thickness more than 0.8 mm
5. No supporting required: tests from only one side, no need to move or support the workpiece
6. Easy conversion: results can be converted to HB, HR, HV and HW via the conversion table
7. High quality indenter with very high hardness, long service life and good interchangeability
| Testing Range | 0~100HBa (equivalent to 25~145HBW) |
| Resolution | 0.5HBa |
| Indication Error | ±2HBa (42~48HBa); ±1HBa (81~88HBa) |
| Repeatability Error | ±2HBa (42~48HBa); ±1HBa (81~88HBa) |
| Net Weight | 0.5 kg |
| Standard Assembly | 2 spare indenters; standard hardness block (high); standard hardness block (low); calibration wrench; leg; carrying case |
| Optional Accessories | Spare indenters; standard hardness block (high/low); dial glass; flat leg |
| Models | HT-10 (934-1): aluminum, aluminum alloys, copper, copper alloys, fiber reinforced plastics and rigid plastics; HT-11 (935): soft metals such as lead and tin, soft plastics; HT-12 (936): rubber, felt and leather |
