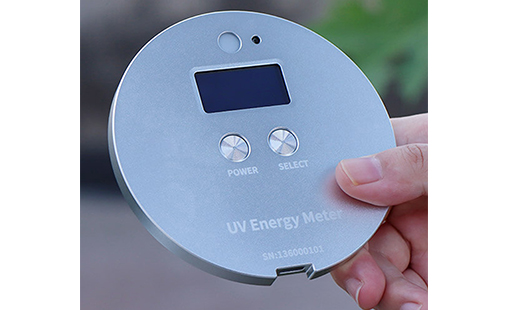

AMT576 UV Energy Meter

The UV Energy Meter is a specialized instrument for measuring ultraviolet energy and intensity emitted from high-pressure mercury lamps, halogen lamps, and similar light sources. It accurately measures UV intensity, accumulated energy, and temperature, making it suitable for use in UV curing systems, UV coating machines, exposure units, dryers, printing machines, and other related equipment. With its ultra-slim 7.6mm profile, the device is ideal for use in confined spaces. It also comes with a built-in high-temperature protective cover, allowing reliable operation in high-heat environments.

Features:

1. Simultaneous Measurement of Energy, Power, and Temperature: Displays real-time UV power and temperature during operation. After measurement, it shows total energy, peak power, and maximum temperature.

2. Compatible with Mercury and Halogen Lamps: Covers a spectral range of 315nm to 400nm, with a peak wavelength of 365nm. Optimized for UV energy measurement from high-pressure mercury and halogen light sources.

3. Two Measurement Modes: Automatic mode starts and ends measurements automatically, capturing curing time and energy precisely. Manual mode allows measurement of energy from multiple light sources.

4. Compact and Portable Design: With only 7.6mm thickness and a 102mm diameter, it’s ideal for use in tight or limited spaces.

5. High-Temperature Protective Cover: Equipped with a thermal-resistant shield to ensure safe and long-term operation in high-temperature settings.

6. Standards: JJG 879-2015 Verification Regulations of Ultraviolet Radiometers

Specifications:

1. Spectral Range: 315nm ~ 400nm,  λp=365nm

2. Power Measuring Range: 0 ~ 2000mW/cm²

3. Power Resolution: 0.1mW/cm²

4. Energy Measuring Range: 0~ 999999mJ/cm²

5. Measuring Accuracy (H is the Standard Value):

    1) H <5mW/cm²: ±0.5mW/cm²

    2) H >=5mW/cm²: ±10%H, ±5% (typical)

6. Sampling Speed: 2048 times/second

7. Recording Period: 32min

8. Power Supply: Rechargeable lithium battery 3.7V@400mAh

9. Display: 128 x 64 Dot matrix OLED

10. Dimension: Diameter 102mm* thickness 7.6mm

11. Weight: 136g
