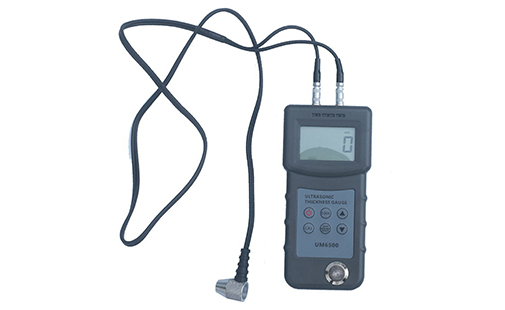

UM6500 Ultrasonic Thickness Gauge

Applications:

Petroleum, Chemical Industry, Power Station, Metallurgy shipbuilding, Aviation, Machinery, Manufacturing Chemical Equipment Boiler,  Oil Storage Tank ect.

Features:

1. Free conversion function of the British system

2. Coupling status prompt function

3. Low power indication function

4. Auto sleep and auto power off

5. High resolution measurement

6. Probe automatic zero calibration for system error correction

7. Status indicator of the coupling and low battery

Specifications:

1. Dispaly: Large Backlight LCD

2. Range: 1.0 ~ 245mm, 0.05 ~  8inch (in Steel)

3. Resolution: 0.1mm

4. Accuracy: ±0.5% depends on materials and conditions

5. Units Metric/ Imperial unit selectable

6. Code: 11 groups

7. Power Supply:  4 x 1.5 AAA size (UM-4) battery

8. Battery indicator: Low Battery Indicator

9. Operating Conditions: 0 ~ 45°C (32°F ~ 104°F);  ≤90%RH

10. Dimensions: 140 x 60 x 22mm

11. Weight: 185g

12. Standard Sensor: 8.0mm x 5MHz, length about 1 Meter

Optional Parts:

1. High temperature 300°C, 4~100mm probe

2. Small diameter 1~50mm probe 5MHz x Diameter 6mm

3. Cast iron probe 3~40mm 2MHz x Diameter 10mm

4. Step Calibration Block 20~50m
