Screen Luminance Meters
Keywords: screen luminance meter, brightness tester, LCD luminance meter, portable luminance meter, cd/m² meter
Measures screen brightness from 0.01 to 39990 cd/m² — no dimmer required, with peak-hold and data retention.

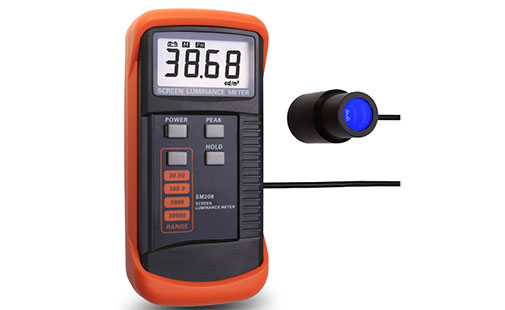

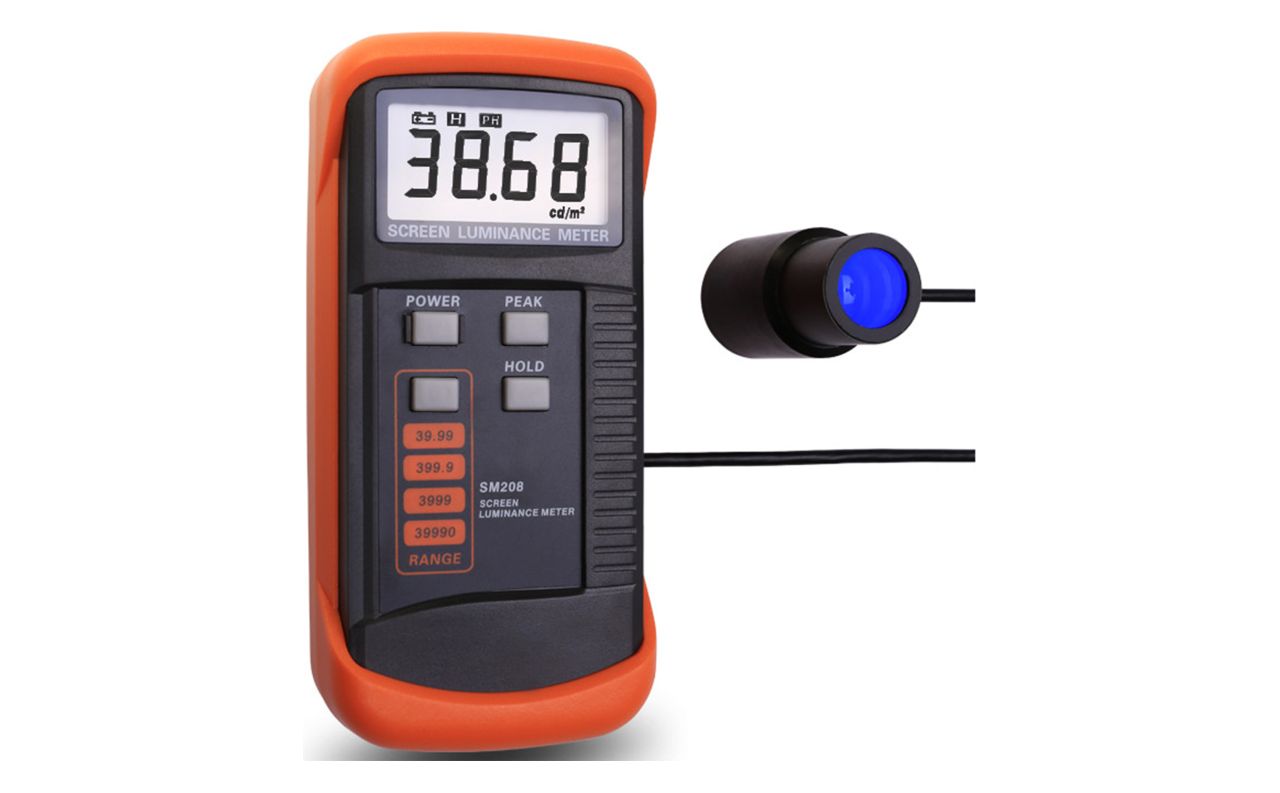

The SM208 Screen Luminance Meter is a dedicated instrument for measuring the luminance of fluorescent screens, CRT displays, monochrome and color transmission screens, LCD backlights, mobile color LCDs, computer and TV screens, and security indication screens. It is also widely used in medical X-ray, electroluminescence, and other photometric fields.
Built around a high-stability silicon photocell detector with rigorous visual correction, the SM208 delivers accurate, reproducible luminance readings in a compact, battery-powered handheld design.
1. Stable silicon photocell detector — light-resistant and impact-resistant, delivering accurate luminance measurement under rigorous visual correction.
2. Wide measurement range — 0.01 to 39990 cd/m² without any external dimmer.
3. Digital display with data retention and peak-hold — good reproducibility for repeat measurements.
4. Low power consumption — a 9V battery supports up to 100 hours of continuous use.
5. Compact 20 mm probe — requires a measured target ≥20 mm in diameter and a tilt angle below 5°.
6. Small, lightweight and portable — easy to carry and operate on site.
1. Power on — press "POWER" to turn the meter on; it enters measurement mode.
2. Aim the probe — align the photometric probe with the screen to be measured.
3. Adjust range — if "OL" shows, press "RANGE" to switch to a higher range; if the reading is too small or "0", press "RANGE" to lower it.
4. Hold reading — press "HOLD" to freeze the current value; press again to return to live measurement.
5. Peak value — press "PEAK" to display only the maximum value encountered since activation.
| Measuring range | 0.01–39990 cd/m² (four ranges: 0.01–39.99 / 0.1–399.9 / 1–3999 / 10–39990 cd/m²) |
| Measurement distance | ≤ 1 m |
| Target size | ≥ 20 mm in diameter |
| Indication error | ≤ ±8% of reading + 1 digit |
| Spectral response | Meets national secondary illuminance standard |
| Linearity error | ≤ ±0.5% of reading + 1 digit |
| Temperature characteristic | ≤ ±0.1% of reading + 1 digit |
| Test environment | 0°C–40°C, relative humidity ≤ 85% RH |
| Dimensions | 150 × 70 × 40 mm |
| Weight | Approx. 300 g (including battery) |
| Power supply | 9V battery (Model 6F22) |
1. Fluorescent screens, CRT and monochrome / color transmission screens
2. Monochrome backlit and color LCD screens, LCD backlights
3. Mobile color LCD and computer / TV screens
4. Security indication screens
5. Medical X-ray and electroluminescence measurement
9V battery (Model 6F22); replacement photometric probe available on request.
