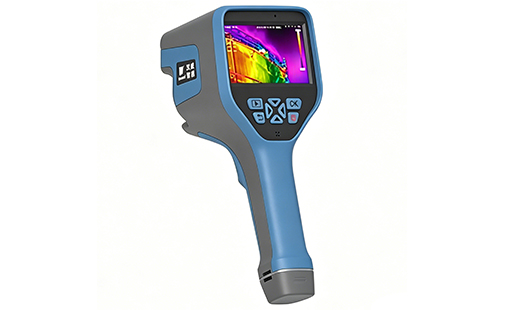

R10 Uncooled Portable Infrared Gas Leak Detector

Application:

1. Oil and petrochemical inspection

2. Natural gas inspection

3. Environmental law enforcement

4. Ammonia leakage inspection

5. Refrigerant leakage detection

Description:

The R10 Uncooled Portable Infrared Gas Leak Detector utilizes advanced technologies such as infrared thermal imaging, TDLAS, and laser ranging. It integrates the technical advantages of infrared thermal imaging and TDLAS, enabling timely response to leaked gases such as methane through long-distance non-contact detection methods. It accurately traces the source of the leak while displaying the concentration of the leaked gas and issuing alarm information. This product is portable, user-friendly, and suitable for various inspection scenarios, effectively enhancing detection efficiency.

Features:

1. Infrared detection

2. High resolution real-time detection

3. High sensitivity gas cloud enhanced imaging Intelligent determination and area detection of gas leakage

4. Efficient data transmission

5. Multiple data interface modes, including USB 3.0 and HDMI;

6. Multiple communication methods, including WIFI, Bluetooth, etc., support real-time data upload.

7. Explosion-proof certificate

8. Exic lIC T4 explosion-proof certification supports safe use of products in petroleum, petrochemical, natural gas, and oil and gas field stations.

Specifications:

Thermal imaging

1. Detector type: Uncooled vanadium oxide

2. Resolution: 640x512

3. Infrared response band: 7.0~8.5μm

4. Thermal sensitivity: 25mk

5. Detector frame rate: 25Hz

6. Focal length: 18mm

7. Field of view angle: 29.8° x 22.6°

8. Detector pixel size: 12um

9. Focusing mode: Manual focusing

Remote laser detector

1. Detection object: Methane

2. Detection principle: Laser absorption spectroscopy

3. Static detection limit: 5ppm.m

4. Response time: 0.5s

5. Detection range: 0~50,000ppm.m

6. Working temp: -20 ~ 45°C; Humidity: <90%RH, No condensation

Temp measurement

1. Temp. range: -20°C ~ 150°C

2. Accuracy: ±2% or +2°C

3. Resolution: 0.1°C

4. Detection method: Center point /hotspot tracking and temperature display

5. Area setting: Point, line, and area selection: Temp. measurement grading

Image display

1. Visible light camera: 5 million pixels

2. Display screen: 4.3" LCD touch screen

3. Display resolution: 800 x 480 pixels

4. Image mode: Infrared, visible light, picture in picture, detail enhancement

5. Color palette: 10 types

Storage and transmission

1. Storage medium: MicroSD card supports up to 128GB

2. Image format: JPEG

3. Video format: MP4

4. External interface: USB3.0, HDMI

5. WIFI: support

6. Bluetooth: Bluetooth 5.0

Power system

1. Battery type: Rechargeable Lithium battery

2. Working time: Not less than 3 hours

3. Charging method: TYPE-C direct charging, base charging

4. Charging time: 2.5 hours to fully charge 90% Storage

Environmental factors

1. Working temp. -10 ~ +50°C (TDLAS not working)

2. Storage temp.: -20 ~ +60°C

3. Relative humidity: 10% to 95%, no condensation

4. Ex grade: IIC T4 level

5. Ingress protection: IP54

Features

1. Laser focal length: Range:<=20m Accuracy:0.2m

2. Audio: Support voice annotation and playback

3. Positioning module: Beidou

Physical parameters

1. Weight: About 1kg

2. Dimension: 287x125x120mm

3. Installation: Universal UNC%-20 nut interface, with supporting tripod bracket
