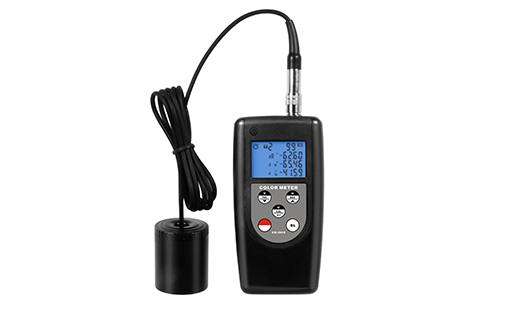

CM-200S Colorimeter Color Difference Meter

Applications:

The meter is an extremely compact, extremely easy-touse tristimulus colormeter specially designed for measuring the color difference between two colors. The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application.

Features:

The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application.

1. Color difference displayed: ∆(L*, a*, b*), ∆(E*ab, C*ab, H*ab), ∆(Y, x, y), ∆(X, Y, Z), ∆(Rs, Gs, Bs) or ∆(WI, YI, Tw).

2. Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).

3. Statistical function (Maximum, Minimum, Average and Standard Deviation).

4. Color difference tolerance set to perform PASS / WARN / FAIL.

5. Store 9 color-difference target colors.

6. User calibration function ensures higher accuracy.

7. Auto memory (99 sets) & Read function.

8. Digital backlight display.

9. Auto power off function.

10. Optional USB data output to connect with PC.

Specifications:

1. Display: Triple 4 digit LCD Display

2. Auto power off: Approx. 3 minutes

3. Data memory capacity: 99 set. (Direct reading from LCD display)

4. Low battery indication

5. Illuminating/Viewing geometry: 45°/0°: Illumination at 45°, measurement at 0°

6. Measuring area: Color difference: ∆(L*,a*,b*), ∆(E*ab,C*ab,H*ab), ∆(Y,x,y), ∆(X,Y,Z), ∆(Rs,Gs,Bs) or ∆(WI,YI,Tw)

7. Color space: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)

8. Target color memory: 9 channel; set by measurement or keypad

9. Measuring range: L*: 5 to 100

10. Measurement conditions: Observe: CIE 2° Standard Observer

11. Illuminant: White LED lamp

12. Repeatability: Standard deviation within ∆E*ab 0.5 (Measurement conditions: Average of measurements of standard white plate)

13. Minimum interval  between measurements: Approx. 2 seconds

14. Operating temperature and humidity: 0~40°C (32~104°F), <85%RH.

15. Storage temperature and humidity: -10~40°C(14~104°F), <70%RH.

16. Power source: 4 x1.5 AAA (UM-4) Battery

17. Dimensions: 140 x 73 x 35mm (5.5x2.9x1.4inches)

18. Weight: Approx. 220g with battery

19. Optional: USB Data Cable with Software
