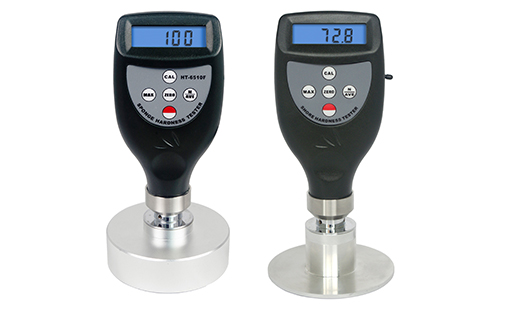

HT6510F HT6510MF Foam Hardness Tester Memory Foam Hardness Tester

Applications:

1. HT6510F is specially for sponge hardness measurement.

2. HT-6510MF is used to measure memory foam hardness.

3. Type F and Type MF are specially for determination of  soft foam hardness, pillow hardness, and hardness of  polyurethane foam rubber products.

4. The large diameter presser foot and cylindrical indenter configuration allow measurement by direct application to the test specimen.

Features:

1. It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

2. With average calculate, peak value hold function.

3. Use RS-232 data output to connect with PC.

4. Provide Bluetooth data output choice.

5. The realization of hardness measurement of memory foam.

Specifications:

1. Parameters: Tested Result/ Mean Value/ Max. Value

2. Display Range: 0~100HF, 0~100HMF

3. Measurement Range: 10~90HF, 10~90HMF

4. Resolution: 0.1

5. Accuracy: ≤±1

6. Spring Force: 455gf

7. Sensor Head Diameter: 25mm

8. Sensor Foot Diameter: 80mm

9. Battery Indicator: Low Battery Indicator

10. Auto Switch Off

11. Operating Conditions: Temp.: 0~40ºC; Humidity: 10~90%RH

12. Power Supply: 4x1.5V AAA Size (UM-4) Battery

13. Dimensions: 162x80x80mm (6.4x3.1x3.1inch)

Optional Accessories:

1. USB Data Cable with Software

2. Bluetooth Data Adapter with Software
