MINI EC/TDS CONTROLLER WITH 4–20 mA OUTPUT
The PSC-54 is a compact EC/TDS mini controller for commercial and industrial water treatment systems. It measures conductivity and total dissolved solids across extended ranges, provides a 4–20 mA output, and uses a user-defined relay setpoint to switch connected equipment when the measured value rises above the configured limit. The controller also supports temperature display and digital calibration.
1. Extended measurement ranges — for total dissolved solids (TDS) and electrical conductivity (EC)
2. 4–20 mA output — output signal for integration with compatible monitoring or control equipment
3. Temperature display — temperature display mode with automatic temperature compensation (ATC) from 1 to 65 °C (33 to 149 °F)
4. Digital calibration — calibration to a selected point
5. Adjustable relay setpoint — can switch a connected pump or valve when the reading rises above the user-set value
6. Stainless steel electrode — with an optional alarm setting

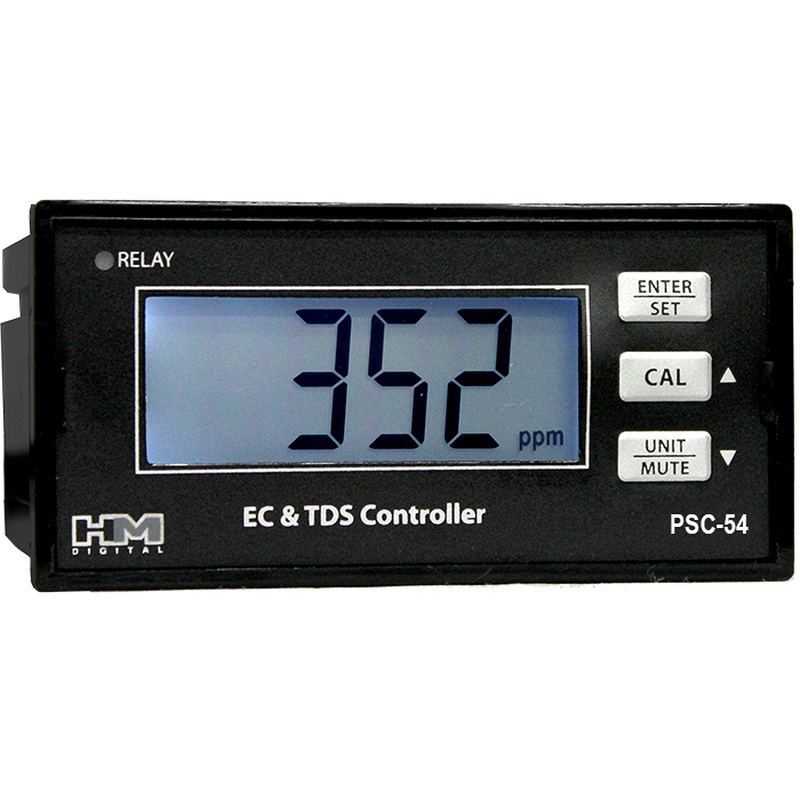

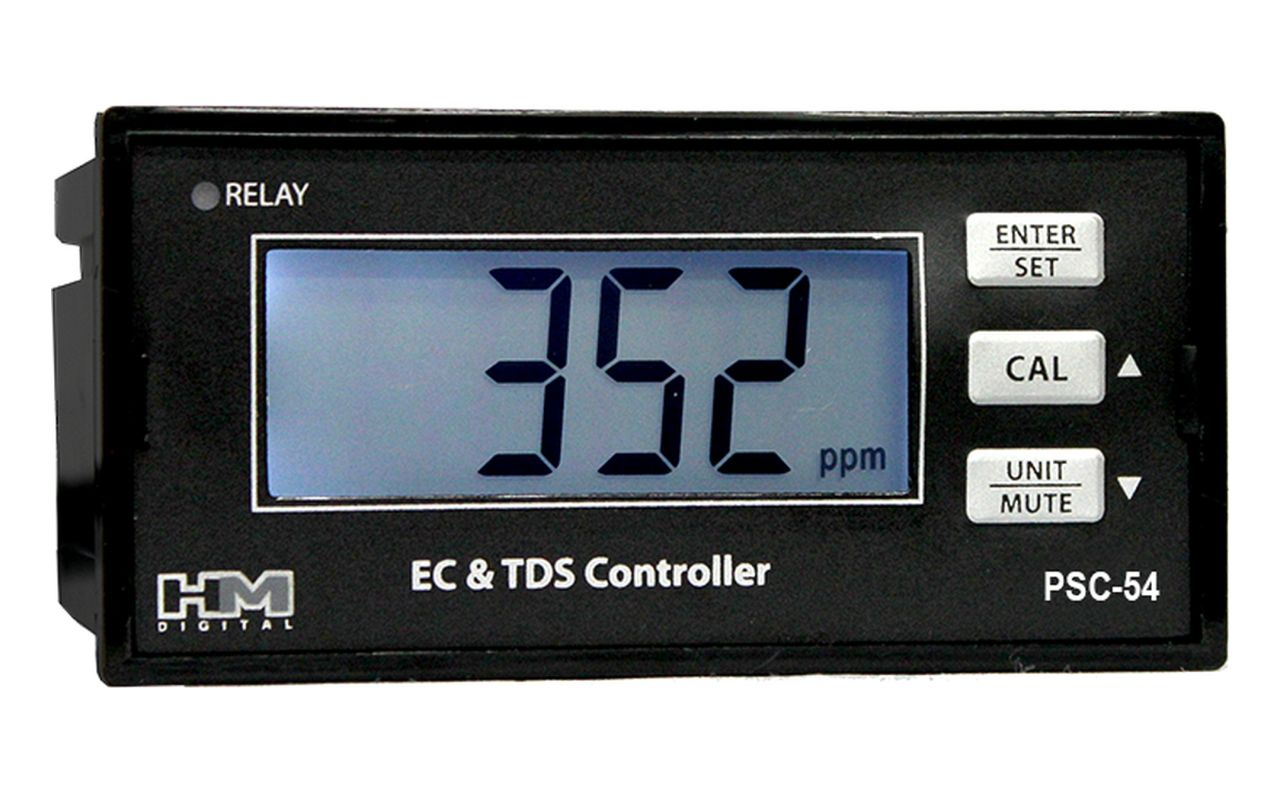

The 2.3-inch backlit LCD shows the measured value and unit, with a relay indicator beside the screen and the controller marking on the front face. The right-hand column carries the enter/set, calibration, and unit/mute keys.

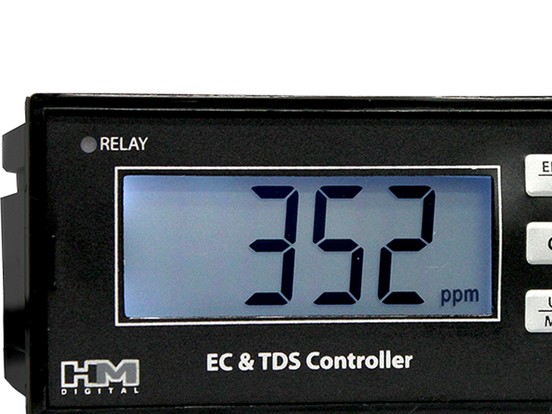

Reading and relay indicator on the LCD |

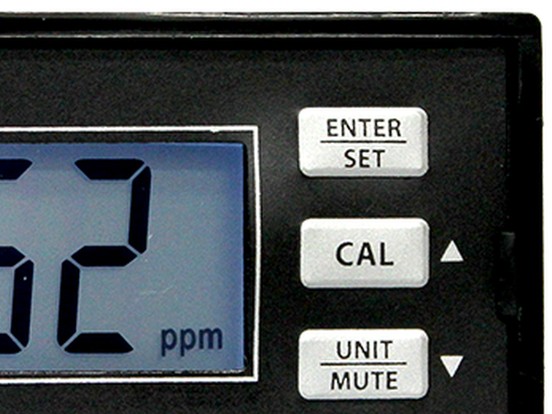

Enter/set, calibration and unit/mute keys |
| Measurement range – TDS | 0–9,999 ppm (mg/L); 0–10.0 ppt (g/L) |
| Measurement range – EC | 0–9,999 µS; 0–20.00 mS |
| Accuracy | ±2% |
| Resolution | 0–99.9: 0.1 ppm/µS; 100–9,999: 1 ppm/µS; 0.1 ppt/mS |
| Automatic temperature compensation | Yes, 1–65 °C (33–149 °F) |
| Calibration | Digital, to any point |
| Setpoint adjustment | On-screen buttons |
| Relay control | Switching relay with user-defined setpoint |
| Relay switching rating | 5 A, 250 V AC |
| Analog output | 4–20 mA |
| Alarm | Optional setting |
| Display | 2.3-inch LCD with backlight |
| Probe connection and cable | 1/2-inch NPTF; 3 m (9.8 ft) cable |
| Power supply | AC 110 V / 220 V (version dependent) |
| Dimensions | 9.6 × 4.8 × 10 cm (3.8 × 1.9 × 3.9 in) |
| Weight | 261 g (9.02 oz) |
1. Water treatment monitoring — monitor EC or TDS in commercial and industrial water treatment applications
2. Setpoint relay and analog signal — for installations where a setpoint relay and a 4–20 mA signal are needed
3. Installation check — confirm that the selected measurement range, probe connection, supply voltage, and control equipment are suitable for the installation
