Laser Distance Meter
Keywords: laser range finder, W600A distance meter, 600m rangefinder, speed measuring rangefinder, surveying range finder

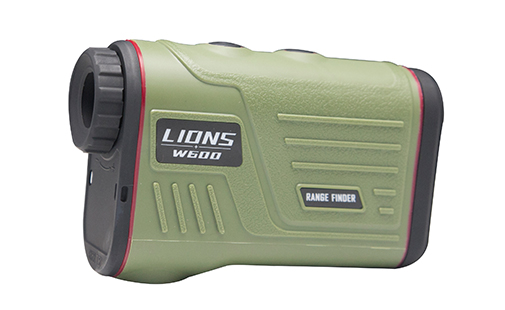

W600A laser range finder with 6× optical viewing system for ranging, angle and speed measurement in surveying and field work.

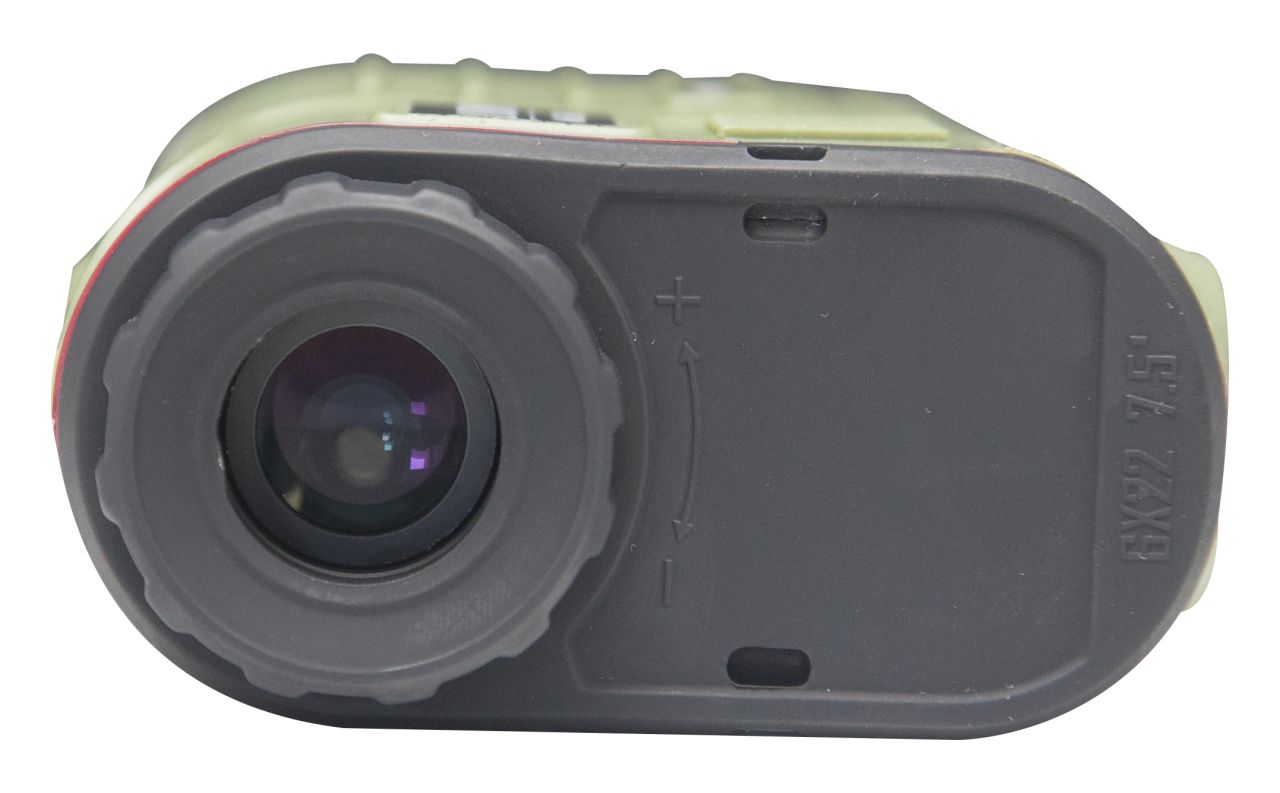

1. 6× optical viewing system — easy for targeting, with functions of Ranging, Angle, Vertical Distance, Horizontal Distance, Two Point Height and Speed measurement.
2. Ergonomic design — graceful appearance meeting human-engineering concepts, suitable for surveying.
3. Automatic shutdown — powers off after 10 seconds if unattended.
4. Meter and Yard display — switchable units for different needs.
| Measuring Range | 5 m ~ 600 m |
| Measuring Accuracy | ±1 m |
| Measuring Range of Speed | 20~300 km/h |
| Laser Wavelength | 905 nm (Class I laser) |
| Angle Range | -60° ~ 60° |
| Angle Accuracy | ±1° |
| Telescope Magnification | 6× |
| Exit Pupil Diameter | 3.7 mm |
| Object Lens Size | 22 mm |
| Field Angle | 7.5° |
| Battery | CR2-3V |
| Weight | 223 g (without battery) |
| Dimensions | 127 × 80 × 43 mm |
| Operating Temperature | 0°C~50°C |
1. Surveying, mapping and outdoor distance measurement.
2. Height and angle measurement for engineering and forestry.
3. Speed measurement of moving objects (20~300 km/h).
