Alcohol Tester
Keywords: standalone alcohol tester, AMT329 alcohol tester, wall mounted breathalyzer, card payment breathalyzer, nayax alcohol tester

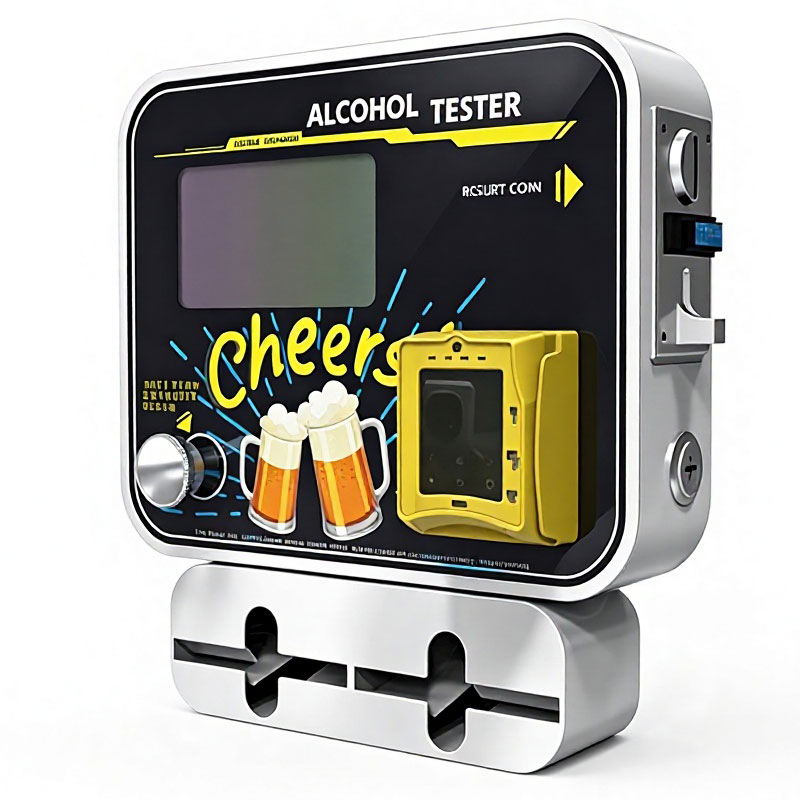

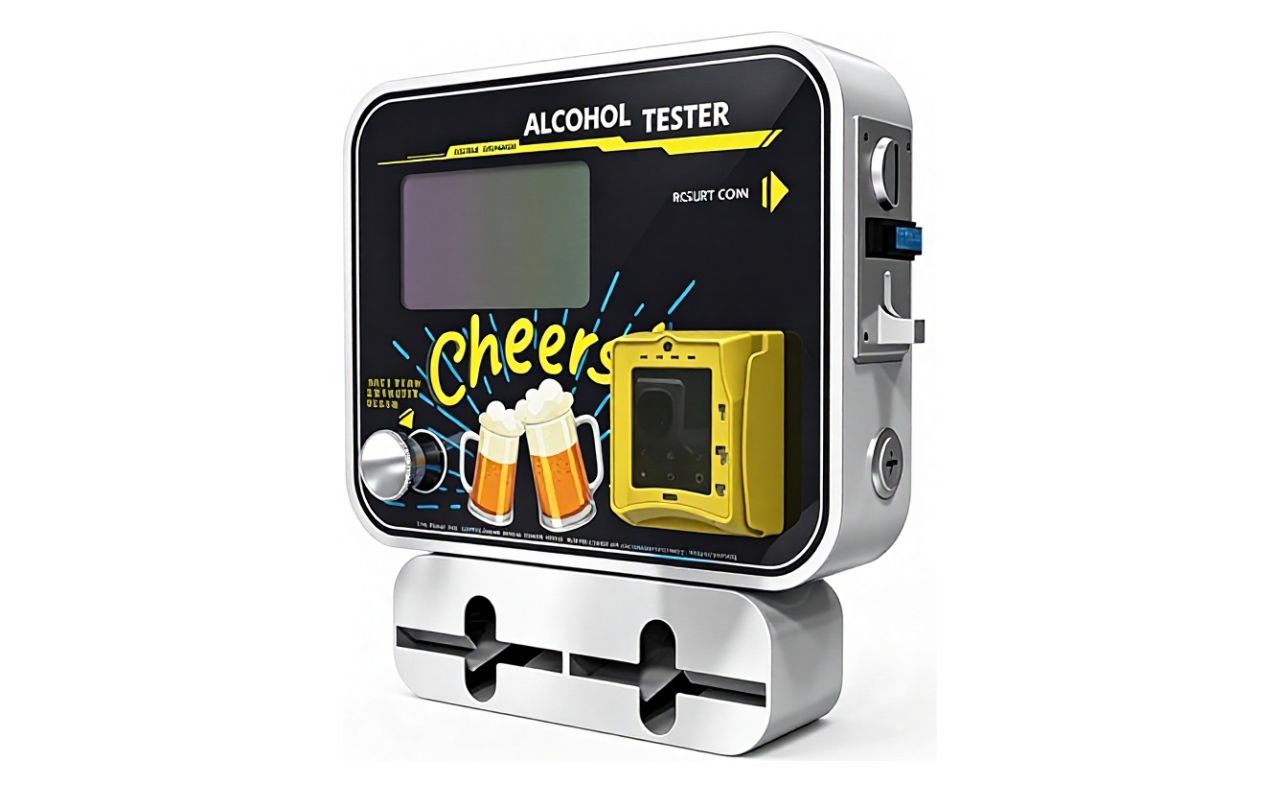

Wall-mounted standalone alcohol tester with a 7.0-inch touch screen, Nayax card reader and coin payment.
The AMT329 is a wall-mounted stand-alone alcohol tester built for unattended public use. It supports both card payment through a Nayax card reader and coin payment, so a venue can offer testing to customers without an attendant and without handling every transaction by hand.
The 7.0-inch colour touch screen is used both for the test procedure and for promotional content: advertisement pictures can be played back while the unit is idle, which turns the tester into an additional revenue surface. The sensor is a changeable fuel cell module with no user calibration, and payment amounts can be queried from the unit itself.
1. Multi-Functional Payment — card and coin payment are both supported, with the reader supplied as an option.
2. Fuel Cell Sensor Module — the module is easy to change and calibration free, which keeps maintenance simple.
3. 7.0-inch TFT Touch Screen — a large colour touch screen guides the user and shows the result clearly.
4. Advertisement Playback — the display supports rolling advertisement pictures, creating an extra revenue channel.
5. Non-Contact or Mouthpiece Blowing — supports both non-contact blowing and a mouthpiece for cleanliness and hygiene.
6. Payment Amount Query — the total taken by the unit can be queried on the spot.
7. Adjustable Unit, K Value and Alarm Level — operators can match the instrument to local practice and legal limits.
8. Standalone Operation — no PC or attendant is required, so the unit can run unattended.
9. Card Reader Option — NAYAX VPOS EU/US card reader can be fitted for cashless payment.
10. Wall-Mounted Body — fixed to a wall at a convenient height, keeping the testing area clear.
| Model | AMT329 |
| Product Name | Standalone Alcohol Tester |
| Sensor | Fuel cell module |
| Detection Range | 0.00–0.5 %BAC; 0.00–5.00 ‰BAC; 0.00–2.5 mg/L; 0.00–5.00 g/L; 0–550 mg/100 ml |
| Resolution | 0.001 %BAC |
| Display | 7.0-inch TFT touch screen |
| Power | AC100 V – AC240 V, 50/60 Hz |
| Accuracy | C < 0.400: ± 0.032 mg/L; 0.400 ≤ C < 1.000: ± 8 %; C ≥ 1.000: ± 30 % |
| Card Reader | NAYAX VPOS EU/US |
| Mouthpiece Size | Φ 7 mm |
| Reserved Port | RS485 / Relay |
| Working Environment | 0 ℃ – 40 ℃, ≤ 90 % RH, no dews |
| Storage Environment | −10 ℃ – 70 ℃ |
| Dimensions | 370 × 86 × 380 mm |
| Net Weight | 5 kg |
1. Bars, clubs and restaurants offering paid self-service testing.
2. Hotels, casinos and entertainment venues with high foot traffic.
3. Factories and industrial sites where workers can self-check before a shift.
4. Venues that want advertising playback on an unattended unit.
