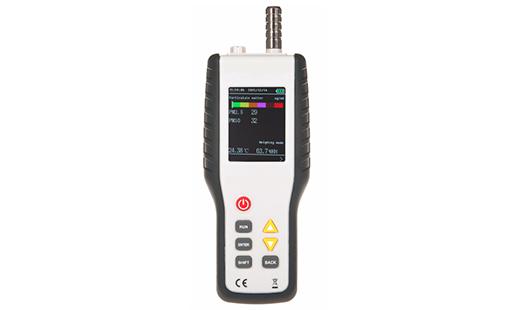

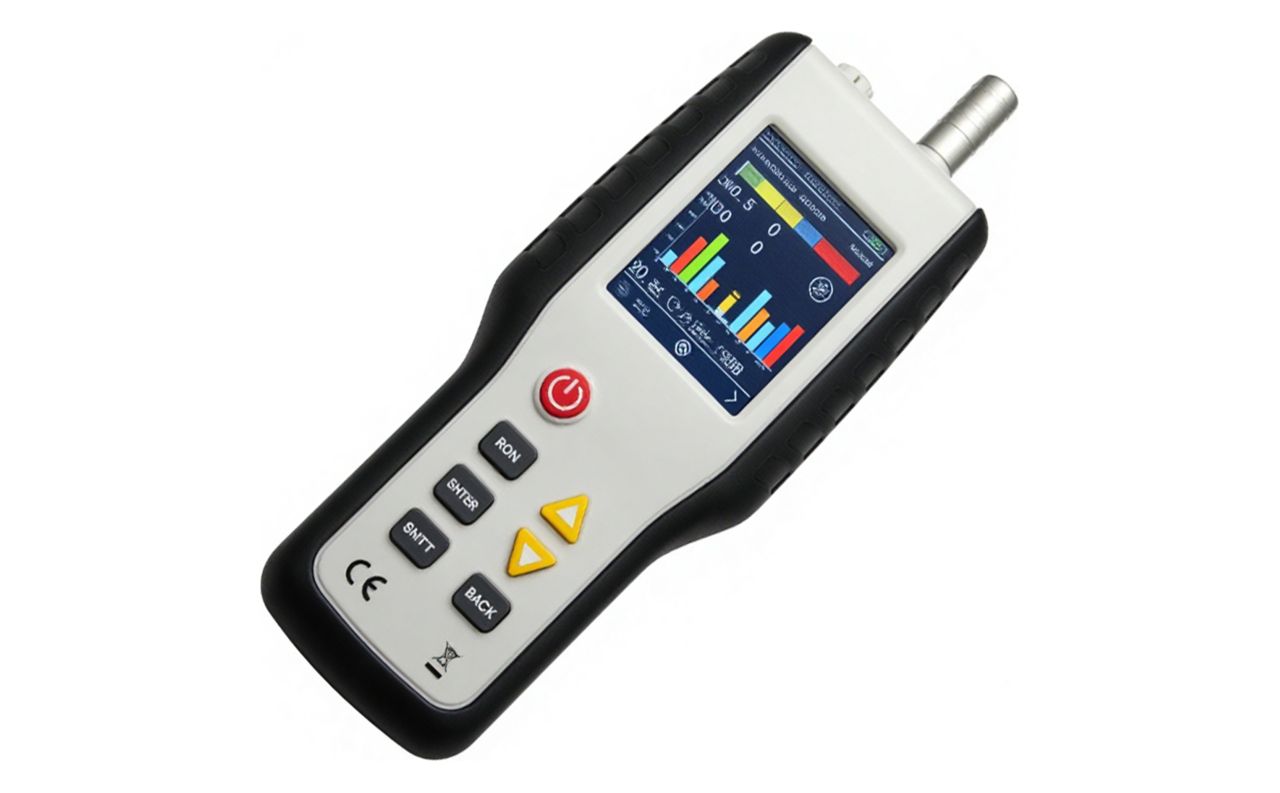

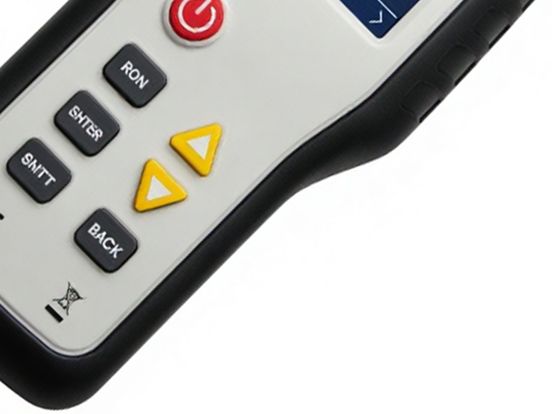

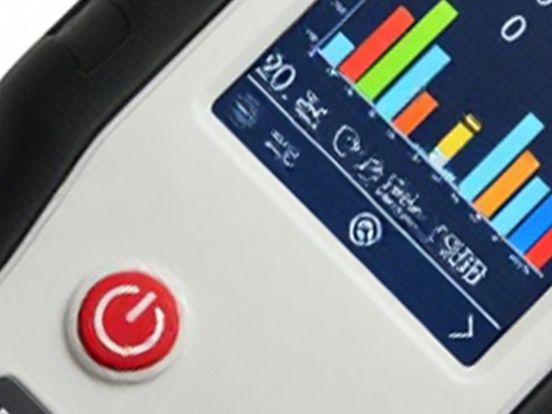

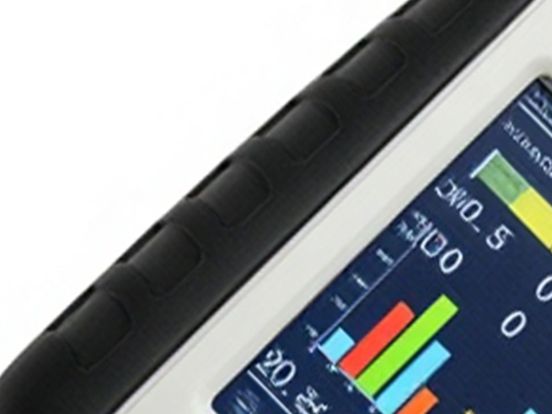

Air Quality Meter
Keywords: PM2.5 meter, AMF079 particle counter, air quality meter, PM2.5 monitor, particulate counter
PM2.5 air quality meter using laser technology to measure inhalable particle concentration, with additional air temperature and humidity measurement.
1. Measures PM2.5 concentration with laser technology, very sensitive
2. Sampling method: pumping type with laser diode light source
3. Grain size channels: 0.3 μm, 2.5 μm, 10 μm
4. Stores 999 sets of data
5. Automatic power off after 2 minutes of no key operation
6. Measures air temperature and humidity
| Principle of PM2.5 Sensor | Optoelectronic type |
| Sampling Method | Pumping type |
| Light Source | Laser diode |
| Grain Size Channels | 0.3 μm, 2.5 μm, 10 μm |
| Flow Rate | 1 L/min |
| Measurement Range | 0~1000 μg/m³ |
| Resolution Ratio | 1 μg |
| Test Method | Manual |
| Sampling Time | 120 s |
| Typical Precision | <20% |
| Concentration Unit | Piece/L; μg/m³ |
| Temperature Range | 0~50°C; typical precision ±1°C |
| Humidity Range | 0~99%RH; typical precision ±2%RH |
| Work Temperature | -10~50°C |
| Working Humidity | 10~90%RH |
| Stored Data | 999 sets |
| Automatic Power Off | 2 minutes (no key operation) |
