Particle Counter
Keywords: particle counter, AMT17 particle counter, particle counter with camera, air particle counter, PM2.5 particle counter

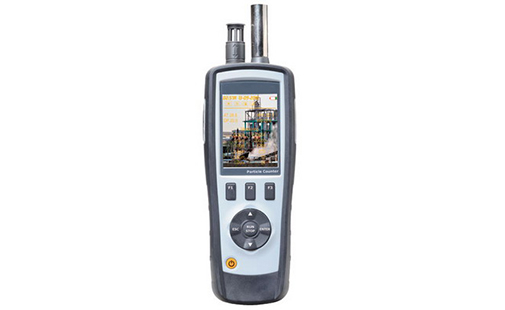

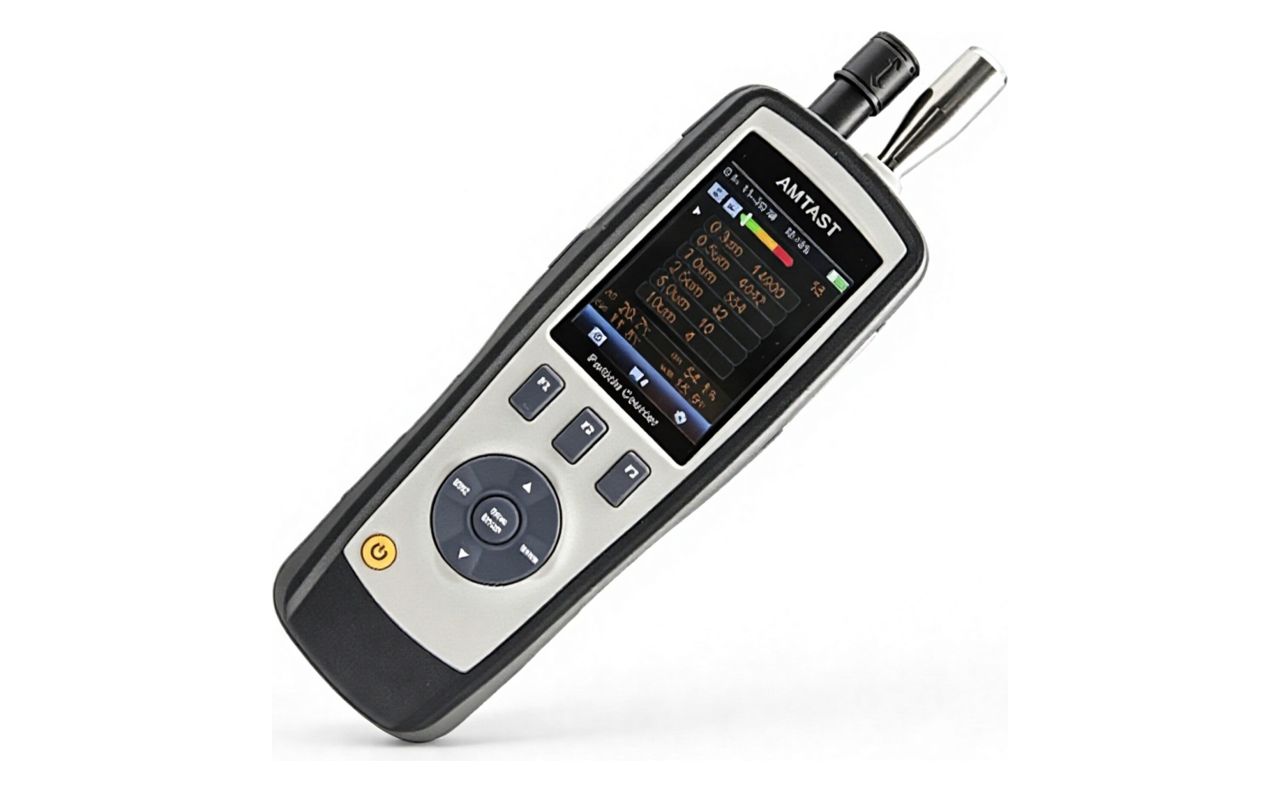

Particle counter with 2.8 inch color TFT LCD display and microSD memory card for capturing images (JPEG) or video (3GP), simultaneously measuring particle counts, gas (HCHO, CO), air temperature and relative humidity.
1. 2.8" TFT 320 x 240 pixels color LCD display
2. Images (JPEG) and video (3GP) capture
3. Simultaneously measures and displays 6 channels of particle sizes, down to 0.3 μm
4. IR temperature measure and laser targeting
5. Gas (HCHO, CO) detectors (AMT18, AMT18M only); mass concentration channel (AMT17M, AMT18M only)
6. Air temperature and humidity, dew point and wet bulb temperature
7. Max, Min, DIF, AVG record, date/time setup, high and low alarm
8. Adjustable emissivity and trigger lock
9. MicroSD (max. 8GB) memory card, USB interface
10. Auto power off
11. Selectable sample time, count data, programmable delay
12. Stores 5000 records of date, time, counts, humidity, temperature, sample volumes, alarms and location label
13. Language selection: English / French / German / Spanish
| Particle Channels | 0.3, 0.5, 1.0, 2.5, 5.0, 10 μm |
| Flow Rate | 0.1 ft³ (2.83 L/min), controlled by internal pump |
| Count Modes | Totalize, Concentration, Audio |
| Coincidence Loss | 5%, 2,000,000 particles per ft³ |
| Mass Concentration PM2.5 | 0~500 μg/m³ (AMT17M, AMT18M only) |
| Mass Concentration PM10 | 0~500 μg/m³ (AMT17M, AMT18M only) |
| Air Temp Range | 0~50°C / 32~122°F; basic accuracy ±0.5°C / 1°F |
| Humidity Range | 0 to 100%RH; basic accuracy ±2.5%RH (20%~80%RH) |
| Dew Point Temp Range | -30~100°C / -22~199°F |
| Wet Bulb Temp Range | 0~80°C / 32~176°F |
| HCHO Range (AMT18/18M) | 0.01~5.00 ppm; basic accuracy ±5% F.S |
| CO Range (AMT18/18M) | 0~1000 ppm; basic accuracy ±5% F.S |
