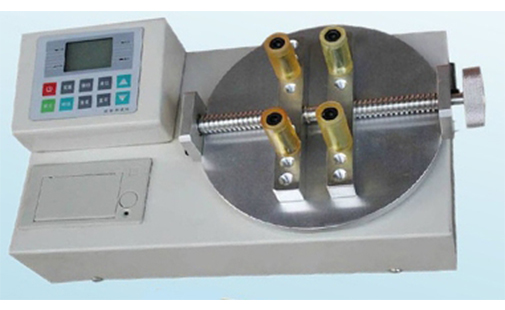

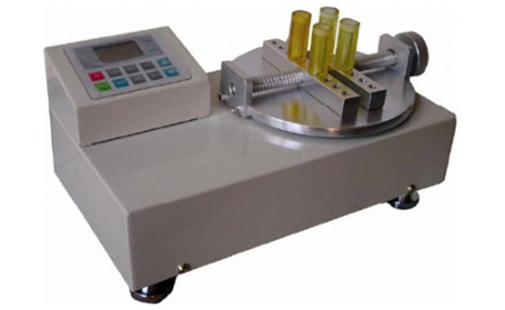

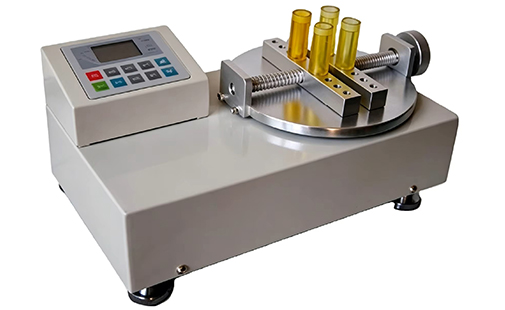

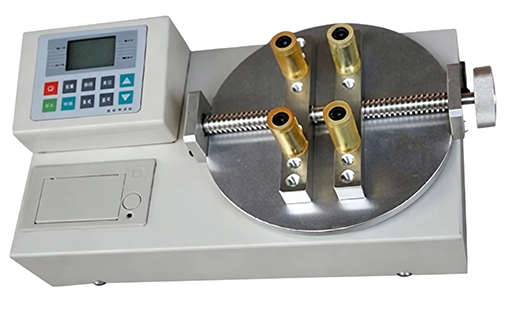

HB Seriels Bottle Cap Torque Tester

Function:

HB Series Cap Torque Tester is an intellectualized measure instrument, which is specially designed for testing and measuring different of torque. HT is main used for kinds motorized or air screwdriver, torque screwdriver, torque wrench, torque driver, measure and calibrate torque testing, and parts fracture test. It is widely applied in electric industry, machinery industry, light industry, automobile industry, scientific research and so on.

Specification:

1. High accuracy and resolution

2. Peak hold function

3. Peak automatic clearance function

4. Tolerance limit (up and down limit)

5. 3 units available: N.m, kgf.cm, lbf.in

6. Reset acceleration of gravity function

7. Large memory

8. Inductive background light

9. USB output; Match synchronous analysis software

10. Measurement mode: Track, Peak, Auto Peak

11. Accuracy: ±0.5%Fs

12. Power: input 220V~240V; output DC9V, 400mA

133. Weight: 9.8Kg

Order Code:

1. HB-10: Peak measurement range:

    1) 0.001~1N.m

    2) 0.01~10.2kgf.cm

    3) 0.01~8.85lbf.in

2. HB-20: Peak measurement range:

    1) 0.001~2N.m

    2) 0.01~20.4kgf.cm

    3) 0.01~17.7lbf.in

3. HB-50: Peak measurement range:

    1) 0.001~5N.m

    2) 0.01~51kgf.cm

    3) 0.01~44.25lbf.in

4. HB-100: Peak measurement range:

    1) 0.01~10N.m

    2) 0.1~102kgf.cm

    3) 0.1~88.50lbf.in

5. HB-200: Peak measurement range:

    1) 0.01~20N.m

    2) 0.1~204kgf.cm

    3) 0.1~177lbf.in

 Note: Printer is optional, if with printer, order number is HB-10P, HB-20P, HB-50P, HB-100P, HB-200P
